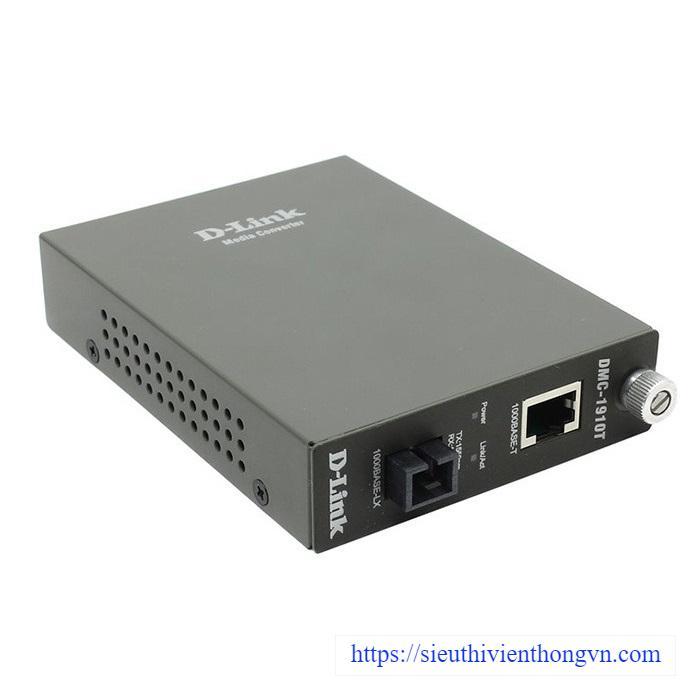

1000Base-TX to 1000Base-LX Single Fiber Media converter D-Link DMC-1910T/E
- 1000Base-TX to 1000Base-LX Single Fiber Media converter (TX: 1550μm; RX: 1310μm, Single-mode, 15km).
- The D-Link DMC-1910T/E Fiber Media Converter converts 1000BASE-T copper Gigabit signals to 1000BASE-LX fiber Gigabit signals. This allows you to connect longer distance fiber cables between two devices that are designed only for shorter distance Cat. 5 twisted-pair cable.
- The DMC-1910T/E media converter combines transmitting and receiving signals onto one fiber strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology, and minimizes any possibility of reflections in the system. The DMC-1910 consists of two units. One unit uses one wavelength to transmit and a second wavelength to receive, while the other flips that relationship. Two different types of transmitting wavelength are supported: one bi-directional wavelength for both transmission and reception.
Specifications
| Model | DMC-1910T/E |
| Standards | 802.3ab 1000BASE-T 802.3z 1000BASE-LX |
| Conversion Scheme | Pair of one-channel single-mode fiber media conversion between 1000BASE-T and 1000BASE-LX |
| Wavelength | 2 different types of transmitting wavelength 1 wavelength with WDM bi-directional for both transmit and receive TX: 1550 micron; RX: 1310 micron |
| Connectors | 1000BASE-T: RJ-45 connector 1000BASE-LX: LC connector |
| Cables | 1000BASE-T: Cat. 5 twisted-pair cable (up to 100m) 1000BASE-LX: single-mode fiber cable (up to 15km) |
| Full Duplex | Full-duplex mode support on 1000BASE-T Gigabit port |
| Auto MDI/MDIX | Auto MDI/MDIX on 1000BASE-T port |
| Transmission Method | Store-and-forward mechanism |
| Forwarding Rate | Full wire-speed forwarding rate |
| Installation Methods | Stand-alone device Installable module in DMC-1000 chassis |
| Power Supply | Through AC power adapters (when used as stand-alone device) |
| Power Consumption | ≤5.5W |
| Operating Temperature | 0° - 40°C |
| Storage Temperature | -25° - 70° C |
| Humidity | 10 ~ 90% non-condensing |
- Bảo hành 12 tháng.
