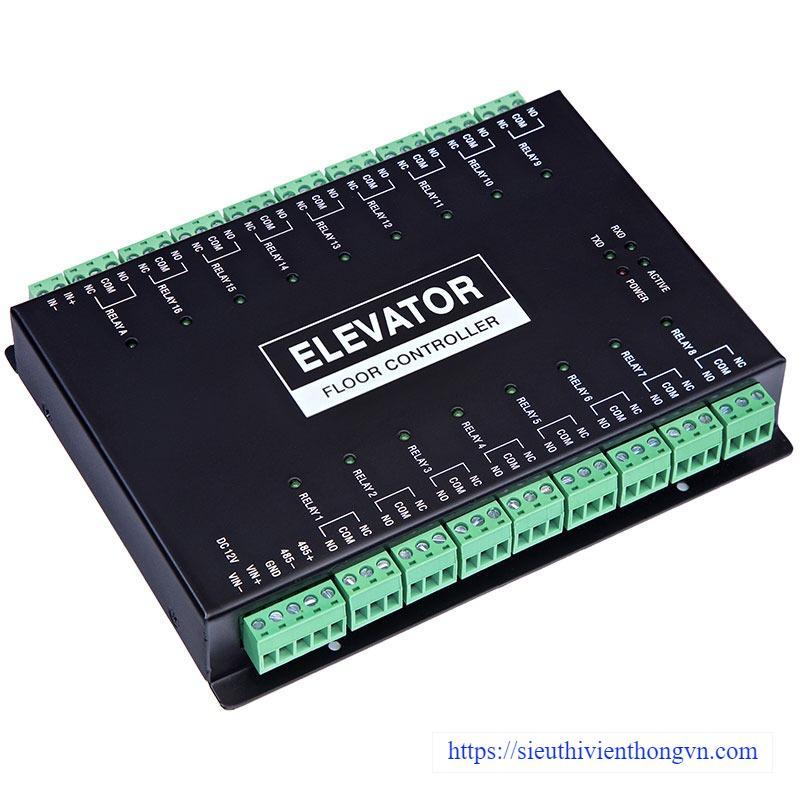

16 Outputs relay box and floor security controller BF-333

16 Outputs relay box and floor security controller BF-333

  • MS 000002575
  • CHIYU
Giá : Liên hệ

Built-in Self-detection device to avoid hand-up.

Provide emergency mode contact to eliminates all floors access control.

Function with Chiyu door controller only, compatible with BF-670 / BF-870 / SEMAC-S3.

No limitation for user control, you can just use card number and group setting to control floor, that way will be much easier for system integration.

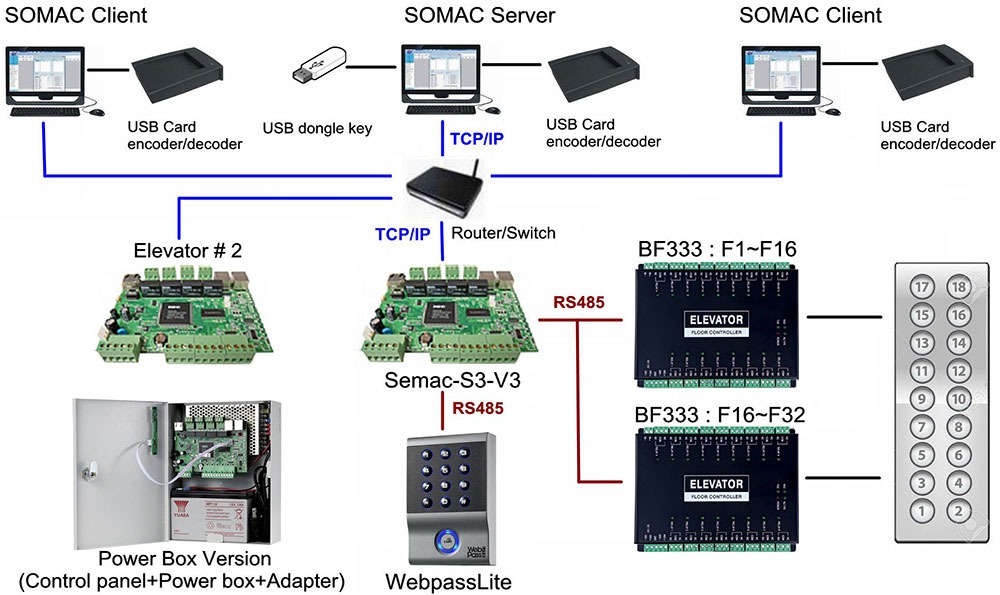

Built-in 16 relay Output. When there are over 16 floors, you can connect more BF-333 to extend the floor control number. You can connect 8 pcs of BF-333 to control 128 floors at the most.

Thêm vào giỏ hàng

FEATURES HIGHLIGHTS

  • Built-in Self-detection device to avoid hand-up.
  • Provide emergency mode contact to eliminates all floors access control.
  • Function with Chiyu door controller only, compatible with BF-670 / BF-870 / SEMAC-S3.
  • No limitation for user control, you can just use card number and group setting to control floor, that way will be much easier for system integration.
  • Built-in 16 relay Output. When there are over 16 floors, you can connect more BF-333 to extend the floor control number. You can connect 8 pcs of BF-333 to control 128 floors at the most.

PRODUCT SPECIFICATION

  • Communication Interface: RS-485
  • Relay Output: 16 (1A /30V DC)
  • Emergency Input Contact: Yes, eliminate all of floor access control.
  • Watch Dog: System halt prevention
  • Operation Power: 9 ~ 24V DC
  • Rated Current: 800 mA
  • Operation Temperature: 0°C ~ 55°C
  • Dimension: 179 x 141 x 29 mm
  • Weight: 650 g
