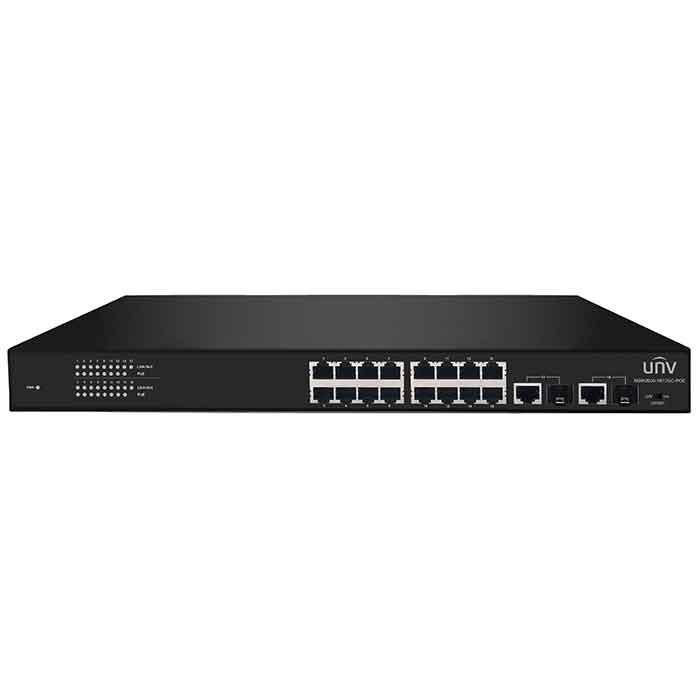

24-Port 10/100Mbps Ethernet PoE Switch UNV NSW2000-24T2GC-POE
- 24 cổng 10/100Mbps Ethernet.
- 2 cổng Gigabit combo (RJ45 and SFP).
- Tất cả cổng 100Mbps đều hỗ trợ PoE.
- PoE tuân thủ IEEE802.3af/at.
- Công suất: Tối đa 30W cho một cổng.
- Khoảng cách truyền dẫn lên đến 250 mét ở chế độ EXTEND
- Dễ dàng sử dụng, không cần phải cấu hình.
- Chất liệu: Vỏ kim loại.
- Kích thước: 440 × 280 × 44 mm.
Đặc tính kỹ thuật
| Model | NSW2000-24T2GC-POE |
| Ports | 24×10/100Base-TX autosensing Ethernet ports(all support PoE) |
| 2×Gigabit combo ports (RJ45 and SFP) | |
| Port attribute | 10/100/1000Mbit/s transfer rate |
| Half-duplex, full-duplex and auto-negotiation | |
| Auto MDI/MDIX | |
| Standards | IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3z 1000BASE-X | |
| ANSI/IEEE 802.3 NWay | |
| IEEE 802.3x flow control | |
| IEEE 802.3af and IEEE 802.3at PoE | |
| PoE | |
| MAC | 4K |
| Packet forwarding rate | 6.55Mpps |
| Switching capacity | 8.8Gbps |
| EXTEND mode | Disabled: all ports can communicate with each other, and monitoring optimization is disabled. |
| Enabled: downlink ports can only communicate with uplink ports; monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. | |
| Status LEDs | Link/Act (steady green): link is normal |
| Link/Act (flashing green): data is being forwarded | |
| Link/Act (off): no link | |
| PoE (steady orange): the port is powering a powered device properly | |
| PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal | |
| Power (off): AC input is abnormal | |
| PoE | 802.3at/af Max PoE capacity: 400 W |
| Consumption | ≤ 450 W |
| AC voltage | 100-240 V |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%-85% |
| Storage temperature | -10°C-70°C (14°F-158°F) |
| Storage humidity | 10%-90% |
| Dimensions (W×D×H) | 440mm×280mm×44mm (17.3'×11'×1.7') |
- Bảo hành: 02 năm.
