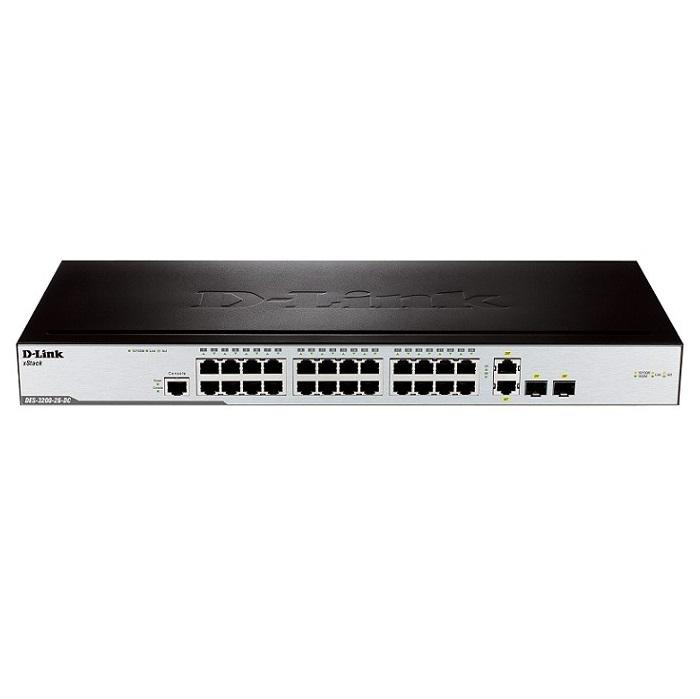

24 port 10/100Mbps Smart Switch + 2 Gigabit SFP D-LINK DES-3200-26-DC
-24 10/100 Base-TX + 2 Combo 10/100/1000 BASE-T/ 100/1000 SFP.
-The DES-3200 Series supports 802.1X port-based/host-based access control, Guest VLAN and RADIUS/TACACS /XTACACS/TACACS+
-Authentication for strict access control over the network.
-The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC for a defined port number to enhance user access control.
-Furthermore, with the DHCP snooping feature, the switch automatically pairs the IP/MAC by snooping DHCP packets and saving them to the IMPB white list. These features play a significant role in keeping the network secure and auditable.
-The built-in D-Link Safeguard Engine identifies and prioritizes “CPU interested” packets to prevent malicious traffic from interrupting normal network flows and protects switch operation. In addition, the DES-3200 Series provides various multi-layer Access Control List (ACL) rules.
-Administrators are able to limit the network services or access rights without impacting the switch performance.
Đặc tính kỹ thuật
| Interface | 24 10/100BASE-TX, 2 Combo 1000BASE-T/SFP |
| PerformanceSwitching Capacity | 8.8 Gbps |
| 64-Byte Packet Forwarding Rate | 6.6 Mpps |
| MAC Address Table Size | 16K Entries |
| SDRAM for CPU | 128 M DDR2 |
| Packet Buffer | 384 KB |
| Flash Memory | 32 MB |
| Jumbo Frame | 12KB |
| LED | Power (Per Device) |
| Console (Per Device) | |
| Link/Activity (Per Port) | |
| Speed Indicator (Per Port) | |
| Stackability | Virtual Stacking D-Link Single IP Management |
| Up to 32 units per Virtual Stack | |
| Power Surge Protection | All Ethernet ports support IEC61000-4-5 10/700us 6 KV surge protection |
| MTBF | 189,396 hours |
| Acoustic | 39.2 dB at low speed, 51.2 dB at High speed |
| Heat Dissipation | 855.696 BTU per hour |
| Power Input | -36VDC to -72 VDC |
| Power Consumption | 13.8W |
| Dimensions | 441 x 308 x 44mm |
-Bảo hành: 36 tháng.
