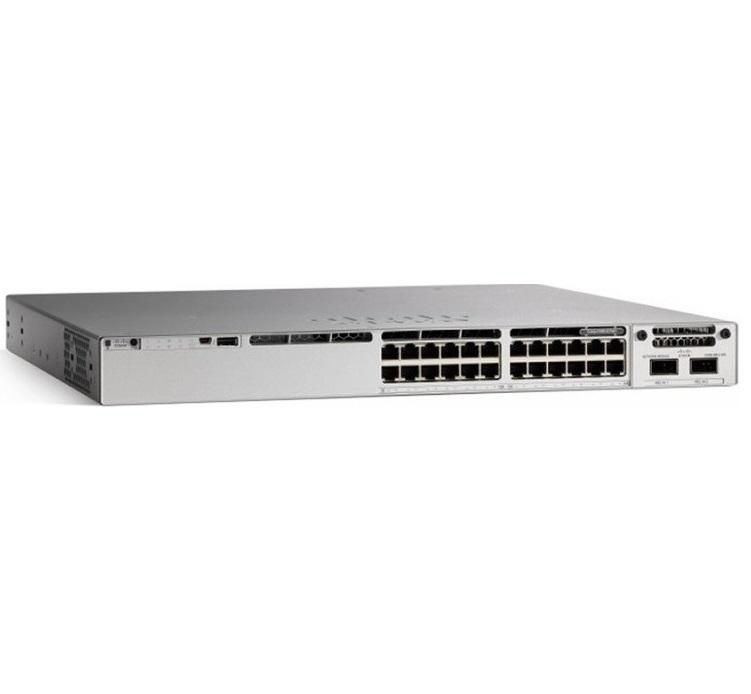

24-port Gigabit Ethernet Data Switch Cisco C9200-24T-E
- C9200-24T-E is the Catalyst 9200 24-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
- Catalyst 9200 24-port data only, Network Essentials.
- Downlinks total 10/100/1000 or PoE+ copper ports: 24 ports data.
- Uplink configuration: Modular uplink options.
- Default primary AC power supply: PWR-C5-125WAC.
- Fans: FRU redundant.
- Software: Network Essentials.
- Stacking bandwidth: 160 Gbps.
- DRAM: 4 GB.
- Flash: 4 GB.
- Switching capacity: 128 Gbps.
- Forwarding rate: 190.4 Mpps.
- Chassis Dimensions: 4.4 x 44.5 x 35.0 cm.
- Weight: 5.0kg.
Specification
| Model | C9200-24T-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C5-125WAC |
| Software | Network Essentials |
| Fans | FRU redundant |
| Stacking bandwidth | 160 Gbps |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Chassis Dimensions | 4.4 x 44.5 x 35.0 cm |
| Weight | 5.0 Kg |
| Virtual Networks | 4 |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Mean time between failures (hours) | 587,800 |
- Bảo hành: 12 tháng.
