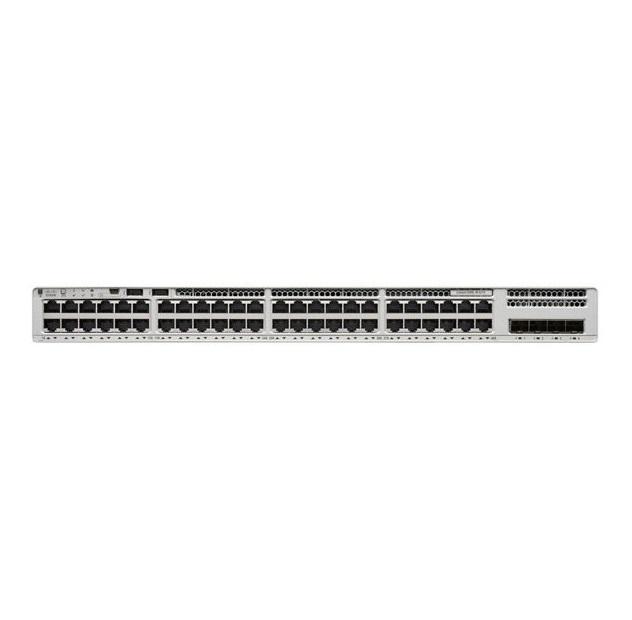

48-port Gigabit Ethernet Data Switch Cisco C9200L-48T-4G-A
- C9200L-48T-4G-A is the Catalyst 9200L 48-port Data 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
- Catalyst 9200L 48-port data, 4 x 1G, Network Advantage.
- Downlinks total 10/100/1000 or PoE+ copper ports: 48 ports data.
- Uplink configuration: 4x 1G fixed uplinks.
- Default primary AC power supply: PWR-C5-125WAC.
- Fans: Fixed redundant.
- Software: Network Advantage.
- Stacking bandwidth: 80 Gbps.
- DRAM: 2 GB.
- Flash: 4 GB.
- Switching capacity: 104 Gbps.
- Forwarding rate: 154.76 Mpps.
- Chassis Dimensions: 4.4 x 44.5 x 28.8 cm.
- Weight: 4.35 Kg.
Specification
| Model | C9200L-48T-4G-A |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions | 4.4 x 44.5 x 28.8 cm |
| Weight | 4.35 Kg |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Switching capacity | 104 Gbps |
| Forwarding rate | 154.76 Mpps |
| Mean time between failures (hours) | 508,700 |
- Bảo hành: 12 tháng.
