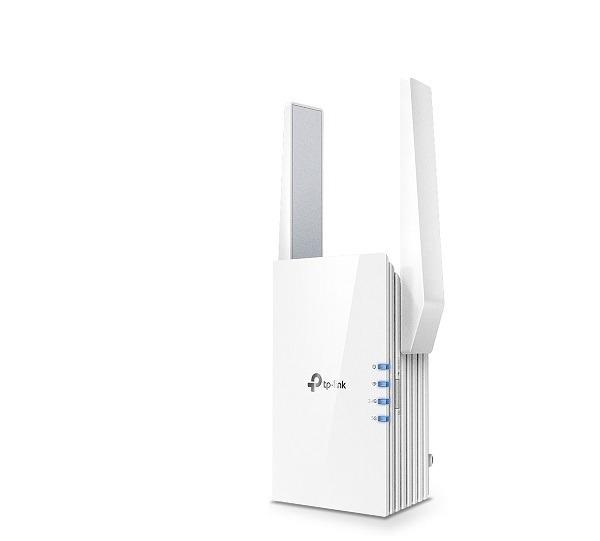

AX1500 Wi-Fi Range Extender TP-LINK RE505X
- RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
- Gigabit Ethernet Port: Provide faster-wired connections to smart TVs, computers and gaming consoles.
- Intelligent Signal Light: Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement.
- AP Mode: Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
- TP-LINK Tether App: Easily access and manage your network using any iOS or Android mobile device.
- Ultimate Compatibility: Extend the range of any Wi-Fi router or wireless access point.
Specifications
| Model | RE505X |
| Hardware | |
| Button | WPS Button, Reset Button |
| Port | 1 Gigabit Ethernet Port |
| Antenna | 2 External Antennas |
| Power Consumption | 10W |
| Dimensions (W × D × H) | 2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Wireless | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 1200Mbps at 5 GHz |
| Transmit Power | 2.4G＜20dBm, 5G＜30dBm |
| Reception Sensitivity | 5GHz: 11ax HE80MCS0:-86, 11ax HE80MCS11:-55 11ax HE40MCS0:-88, 11AX HE40MCS11:-58 11ax HE20MCS0:-92, 11ax HE20MCS11:-60 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Wireless Function | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| Others | |
| Certification | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Package Contents | Wi-Fi Range Extender RE505X Quick Installation Guide |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
