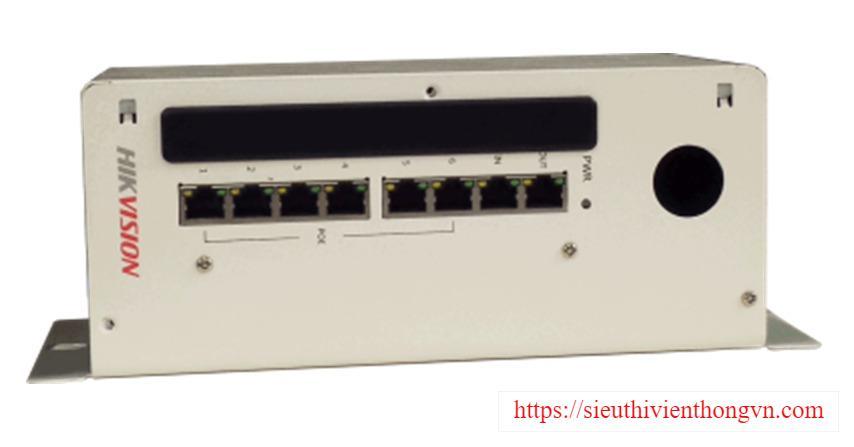

Bộ cấp nguồn và phân phối tín hiệu Video/ Audio HIKVISION DS-KAD606
-Cấp nguồn ổn định.
-Hỗ trợ 8 cổng RJ45 10/100 Mbps (6 cổng PoE cấp nguồn qua mạng).
-Hỗ trợ các chuẩn IEEE802.3, IEEE802.3u, IEEE802.3x.
-Hỗ trợ tính năng VLAN.
-Bộ cấp nguồn kết nối với camera chuông cửa DS-KV8102-IP, DS-KV8102-VP.
-Built-in 24V DC voltage-stabilized switching mode power supply.
-Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable powering and two adaptive 10/100M cascading LAN interfaces.
-IEEE802.3, IEEE802.3u, IEEE802.3x.
-Storing and forwarding function.
-VLAN technique.
-Over 1000,000h mean time between failure.
-Operating temperature range: From -30°C to 70°C.
-Suitable for wall mounting.
Đặc tính kỹ thuật
| Model | DS-KAD606 |
| Network Parameters | |
| Interface Number | Eight 10/100M Interfaces |
| Interface Type | RJ45, Full/Half-Duplex, MDI/MDI-X, Self-Adaptive |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Processing Type | Storing and Forwarding |
| Flow Control | IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex) |
| Priority queue | Four |
| MAC Address List | 8K |
| Internal Buffer | 1 Mbit |
| Other Parameters | |
| Power Supply | 220VAC |
| Power Dissipation | < 3W |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Operating Humidity | 5 to 95%, No Condensation |
| Size | 275.2 x 92 x 102.2 mm |
| Certification | FCC, CE |
-Bảo hành: 24 tháng.
