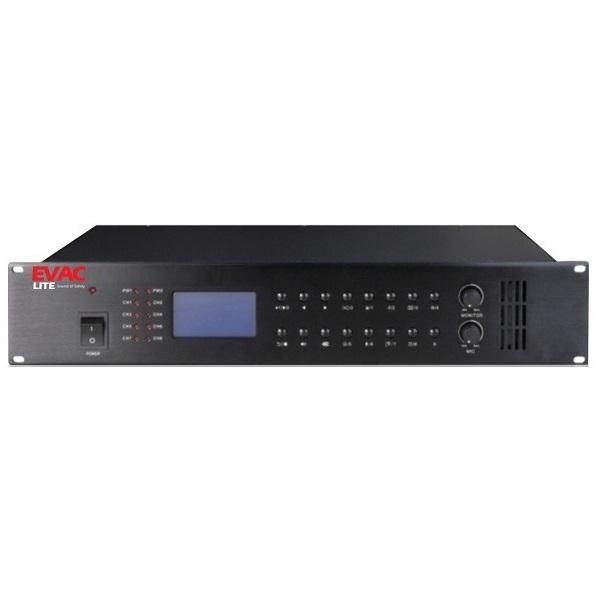

Bộ điều khiển âm thanh thông báo 8 vùng Honeywell EVACLITE

Giá : 30,979,000 vnđ (Đã bao gồm VAT)

- Tích hợp USB, MP3, AM/ FM.

- 8 vùng Paging.

- Thao tác dễ dàng qua màn hình LCD.

- Cung cấp công suất cho 8 vùng, công suất cực đại mỗi vùng 400W, công suất tối đa của 8 vùng là 1000W.

- Nguồn cấp: AC 220V ± 10% 50/50Hz

- Kích thước: 540 ×577 ×250 mm (W x H x D).

Features

- 8 Zone, Voice Alarm controller with built-in USB, MP3, AM/FM player (with 8 zone paging station)

- 8 Zone voice alarm controller

- 8 Zone Paging system with pre-recorded messages for voice evacuation

- Adopts LCD screen for easy operation

- Simple integration with Fire Alarm Panels to activate EVAC/ALERT pre-recorded messages.

- Built-in MP3 (USB) and FM/AM functions

- Built-in loudspeaker for performing broadcast monitoring, with special monitoring volume control

- 1 line input

- 1 microphone input, provides mix and emergency paging output modes

- Provides 8 broadcast zone output function, the peak power of each zone is 400W, and the total power of the all 8 zones is 1000W

- 1 alarm activation input

- 19” 2U rack mount type

Specifications

Model	EVACLITE
Line Input	10K Ohms 775mV, unbalanced
Microphone Input	600 Ohms 10mV, unbalanced
Remote Paging Microphone with zone selection	Signal Input frequency: 100Hz~10KHz Signal Input Sensitivity: 5V RMS Communication: RS485 mode Transmission distance: 300m
Line Output	775mV
Frequency Response	20Hz~20KHz
Total Harmonic Distortion (THD)	<0.01% at 1kHz
Signal Noise Ratio (S/R)	>70 dB
Alarm Activation Input	0V Short Circuit Signal
Timing Activation Input	0V Short Circuit Signal
Alarm Activation Output	0V Short Circuit Signal
Power Output Capability	5A
Constant Voltage Input	100V, 70V
Subarea Channel Power	≤ 400W (single channel,Total power ≤ 1000W)
Frequency Range	FM: 87.5MHz ~ 108MHz AM: 531KHz ~ 1710KHz
Power Supply Voltage	AC 220V ± 10% 50/50Hz
Rated Power	20W
Dimensions	540 x 577 x 250 mm
Weight	10.6kg

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
