Bộ khuếch đại công suất 300W TOA VP-3304
Bộ khuếch đại công suất 300W TOA VP-3304

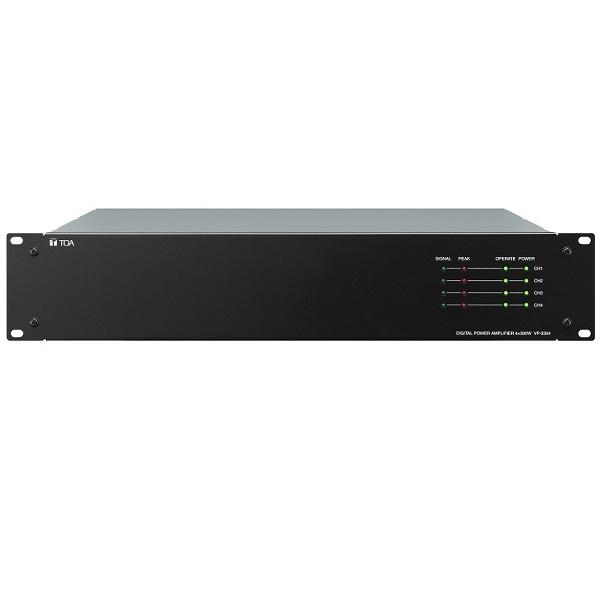

The VP-3304 is an Digital Power Amplifier used for the SX-2000, VX-2000 and VM-3000 systems. It is a 2U rack-mount unit equipped with 4 channels of class-D digital power amplifiers, which contribute to energy-saving and lightweight design. The VP-3304 also features a front-mounted LED indicator for operating status indication and stand-by mode to be set for reducing stand-by power consumption. It requires a dedicated power supply unit VX-3000DS.
Specifications
| Model | VP-3304 |
| Power Source | 31 V DC (operating 20-34 V DC) DC power in: M4 screw terminal, distance between barriers: 11 mm |
| Amplification System | Class D |
| Current Consumption | 11A (Rated Output Power), 0.6A (Surveillance), 0.1 A (Standby) at 31 VDC, 100 V line, each channels |
| Output Voltage | 100 V (70 V, 50 V: selectable by internal change) |
| Minimum Resistive Load | 33Ω (at 100 V line), 23Ω (at 70 V line), 17Ω (at 50 V line) |
| Maximum Capacitive Load | 0.5 μF |
| Number of Channels | 4 |
| Frequency Response | 40 Hz - 16 kHz, ±3 dB (at 100 V line, 1/3 rated output) |
| Distortion | 1 % or less (at 100 V line, rated output, 1 kHz) |
| Signal to Noise Ratio | 80 dB or more (at 100 V line, A-weighted) |
| Crosstalk | 60 dB or more (at 100 V line, A-weighted) |
| Operating Temperature | -5ºC to +45ºC |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Panel: Surface-treated steel plate, black, 30 % gloss, paint |
| Dimensions | 482 x 88.4 x 390 mm |
| Weight | 7.3kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
