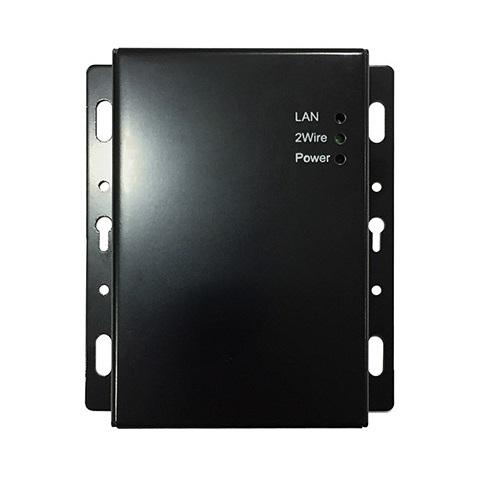

Bộ nguồn 48VDC BasIP SW-02

- Bộ nguồn 48VDC.

- Hỗ trợ chức năng cấp nguồn qua mạng PoE.

- The SW-02 converter is used to expand Ethernet IP signals through a two-wire cable in the existing two-wire network of the building.

- Converters can be used when connecting, distributing, and converting signals for IP devices (call panels, internal monitors, etc.) through a two-wire cable with 128-bit AES and guaranteed QoS for loss-sensitive devices.

- In addition, the system can connect to the Internet through the same converters.

- The system is suitable for a modernization project in older buildings that use two-wire wiring. This can solve

cabling and restoration infrastructure problems, as well as lower project costs.

- The maximum number of devices in the system: 9999.

- Connection: Two-wire, Ethernet UTP CAT 5.

- Maximum cable length over two wires: 50 meters between two devices.

- Maximum Ethernet cable length: 100 meters.

- Power Supply: 48 Volts.

- Power Consumption: 1 Watt in standby mode,

- 7 Watt in operation.

- One converter can be connected either to the internal monitor directly or to a local network using

an Ethernet cable.

- Support PoE IEEE 802.3 af / at.

- Thương hiệu BasIP chính hãng của Anh.

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
