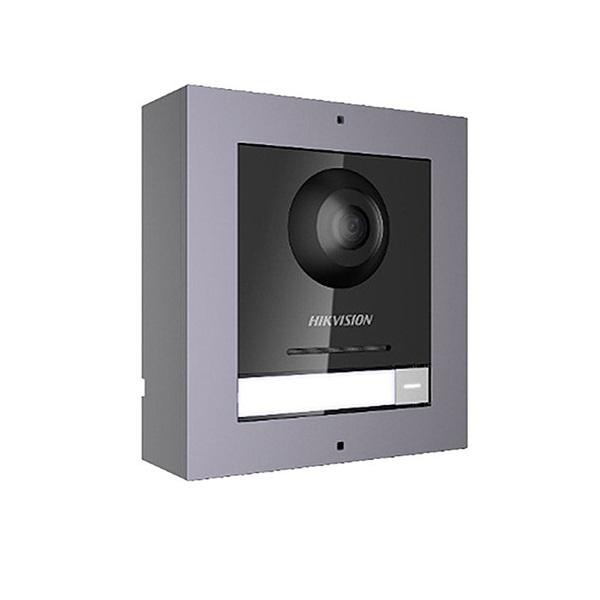

Camera chuông cửa IP HIKVISION DS-KD8003-IME1 FLUSH
- Độ phân giải: 2.0 Megapixel.
- Tích hợp hồng ngoại.
- Phím ấn cứng vật lý.
- Tích hợp micro và loa.
- Kết nối Ethernet 10/100Mbps.
- 4 ngõ vào báo động.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Tiêu chuẩn chống thấm nước và bụi: IP65 (thích hợp sử dụng trong nhà và ngoài trời).
- Kích thước: 98×99.8×43.9mm.
Đặc tính kỹ thuật
| Model | DS-KD8003-IME1 Flush |
| Video Parameters | |
| Supplement Light | IR supplement |
| Lens | 1 |
| FOV | Horizontal: 180° Vertical: 96° |
| Pixel | Main stream : 1920 × 1080 |
| Sub stream : 720 × 480 | |
| Audio Parameters | |
| Audio Quality | Noise suppression and echo cancellation |
| Network Parameters | |
| Communication Protocol | TCP/IP, RSTP |
| Wired Network | 10/100 Mbps self-adaptive Ethernet |
| Device Interfaces | |
| Alarm input | 4 |
| Alarm output | 0 |
| Network Interface | 1 |
| Exit Button | 2 |
| Lock Control | 2 |
| Door Contact Input | 2 |
| Power Interface | 1 |
| General | |
| Button | 1 |
| Installation | Flush mounting |
| Protective Level | IP65 |
| Power Supply Method | 12VDC/PoE (IEEE 802.3af) |
| Working Temperature | -40° C to +55° C(-40° F to 131° F) |
| Working Humidity | 10% to 95% |
| Application Environment | Outdoor |
| Power Consumption | ≤ 10 W |
| Weight | Without package: 345 g With package: 840 g |
| Dimensions | Door station:98 mm × 99.8 mm × 43.9 mm (3.86' ×3.93' × 1.73') |
| Cover:134 × 124 × 4 mm(5.28 × 4.88' ×0.16') | |
| Gang box:134 × 135 × 56 mm(5.28 × 5.31' ×2.20') | |
- Bảo hành: 24 tháng.
