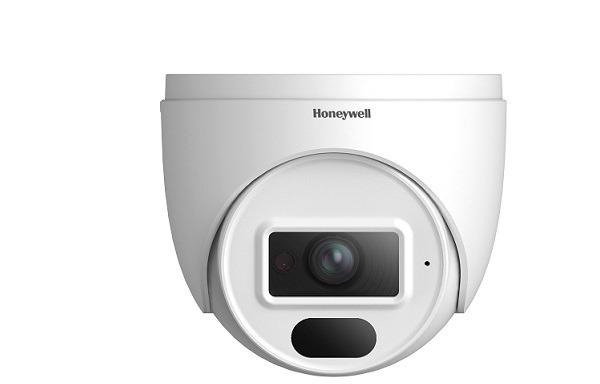

Camera IP Dome hồng ngoại 2.0 Megapixel HONEYWELL HIE2PI-L
- HONEYWELL HIE2PI-L là dòng camera IP Dome hồng ngoại 2.0 Megapixel.
- Cảm biến hình ảnh: 1/3.2 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ nhạy sáng tối thiểu: 0.012Lux/F1.2 (color), 0Lux(IR on).
- Ống kính: 3.6mm.
- Tầm quan sát hồng ngoại: 20 mét.
- Chức năng chống ngược sáng thực WDR 120dB.
- Tự động cân chỉnh độ sáng.
- Hỗ trợ 20 User cùng lúc.
- Kết nối: ONVIF, Ethernet RJ-45.
- Tiêu chuẩn bảo vệ chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Chức năng cung cấp nguồn qua Ethernet PoE.
- Nhiệt độ hoạt động: -20°C-55°C.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | HIE2PI-L |
| Camera | |
| Image Sensor | 1 / 3.2 inch CMOS |
| Number of Pixels (H x V) | 1920 x 1080 |
| Electronic Shutter | 1/25s ~ 1/ 100000s |
| Iris | Fixed Iris |
| Min Illumination | 0.012lux @F1.2, AGC ON; 0 lux with IR 0.046 lux @ F2.0, AGC ON; 0 lux with IR |
| Lens | 3.6 mm @F2.0, (fixed lens), horizontal field of view: 75.8° |
| Day & Night | TDN |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| Resolution | 1080P (1920 × 1080), 720P (1280 × 720), D1, 480 × 240, CIF |
| Number of Streams | 2 (Main Stream, SubStream) |
| Frame Rate | Main Stream: 60Hz:1080P/720P(1~30fps);50Hz: 1080P/720P(1~25fps) Sub Stream:60Hz: D1/CIF/480×240(1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Encode Mode | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | 3, Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS, IPv4, IPv6 |
| Interface Protocol | ONVIF |
| Motion Alarm | Supported |
| IP Rating | IP67 |
| IR Distance | 10 ~ 20m |
| Others | |
| Power Supply | DC 12V / PoE |
| Power Consumption | <5 W |
| IR Consumption ON | 1 W |
| Operating Temperature | -20 deg C to 55 deg C, Humidity: <95% (non-condensing) |
| Dimensions (mm) | 94.8 × 82.8 |
| Weight | Approx. 0.287 kg |
| Installation | Ceiling mounting (Wall mounting available with the junction box and bracket ) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
