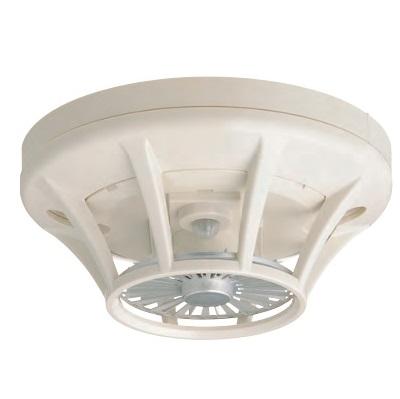

Đầu báo nhiệt cố định NOHMI FDLJ106-DW-75
- The FDLJ series fixed temperature heat detectors use bi-metal snap discs as heat sensing elements, which close the alarm contacts when ambient temperature has reached a pre-determined level of temperature. The detectors are automatically self-restoring after operation, when the ambient temperature falls below the operation temperature.
- The FDLJ series heat detectors are equipped with the physical protectors which improved the detectors' durability much more than ever series detectors.
- The screw holes of the detectors employ U-figure structure that makes the installation easy. In addition, all the tips of the lead wires are finished with soldering, that also makes the installation easy.
- This series also includes water proof types, which are suitable for use in highly humid environments such as kitchen, bath room, and drying room.
Features
- Physical protector equipped.
- Physical durability improved.
- Easy installation screw holes.
- Easy installation lead-wire tip soldering finish.
- Sticker color indication for water proof type and non-water proof type.
- 2-wire system.
- Alarm response lamp (LED).
- Water proof type available.
- Approved by Japan Fire Equipment Inspection Institute.
Đặc tính kỹ thuật
| Model | FDLJ106-DW-75 |
| Type | Water-proof |
| Sensitivity | Class 1 |
| Rated Operating Temperature | 75℃ |
| Sensor Contact Rating | 30VDC, 75mA |
| Response Lamp | Red LED |
| Ambient Temperature | -10 to 55℃ |
| Materials | Heat receiving plate: Aluminum Main body: Polycarbonate resin |
| Weight | Approx.85g |
- Bảo hành: 12 tháng.
