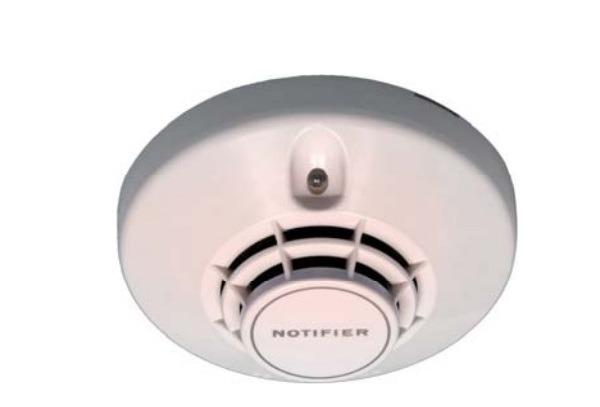

Đầu dò khói kèm đế NOTIFIER ND-751P-E
- ND-751P-E Intelligent Plug-in Photoelectric Smoke Detector is a new developed product by NOTIFIER® in order to meet the sophisticated market demands. This new smoke detector has embedded a Central Processing Unit (CPU), and is addressable and software addressing designed; with integral communication provide features that surpass conventional detectors. ND-751P-E detector is compatible with the NOTIFIER® N-6000 Fire Alarm Control Panel (FACP), and is used with B601 Intelligent Detector Base for connection.
- ND-751P-E detector is designed to provide open area protection, which applicable for areas such as residential buildings, office complexes, schools, college campuses and any others utilities.
- Drift Compensation: The detector adjusts its alarm threshold according to the site condition such as temperature, humidity, dust, etc, so that its sensitivity remains unchanged while the environment changes.
- Sensitivity Options: The detector can set and adjust its sensitivity according to different environments.
- The LED can be latched on by code command from the control panel for an alarm indication. It can also be unlatched to the normal condition by code command.
- Stable communications techniques with noise immunity.
Thông số kỹ thuật
- Operating Temperature: -10ºC ~ 55 ºC
- Relative Humidity: 10% ~ 95%RH, non-condensing
- Voltage Range: 15 ~ 32VDC
- Standby Current: ≤ 450μA
- Max. Alarm Current: 3.5mA
- Dimensions:
+ Diameter: 102mm;
+ Height (including base): 50mm.
- Bảo hành: 12 tháng.
