| Type | Quad Multi-Frequency Photobeam Detectors with Laser Beam Alignment |
| Current Draw | 125mA,Tx & Rx, 290mA with heater as well |
| Sensing Range | Outdoor- 660' (200m) Indoor- 1320' (400m) |
| Operating Voltage | AC/DC 12~24V (Non-polarized) |
| Interupt Speed | 50msec~700msec (adjustable) |
| LEDs - Red | Alarm LED (Receiver) - When transmitter and receiver are not aligned or when beam is broken |
| LEDs - Green | Power LED (Rx & Tx)- Indicates connected to power |
| Detection System | Simultaneous break of 4 beams |
| Alarm Output | Form "C" relay COM/N.O./N.C. 1A@125VAC/24VDC |
| Tamper Output | NC. switch, 1A@120VAC |
| Case material | PC Resin |
| Laser Wavelength | 650nm |
| Operating Temperature | -13º~+131º F (-25º~+55º C) |
| Dimensions | 15-1/4" x 4-7/16" x 4-11/32" (387 x 113 x 110mm) |
| Laser Output Power | 5mW |
| Alignment Angle | Horizontal (+/-)90º, Vertical: (+/-)15º |
| Weight | 5.73-lb (2.6kg) |

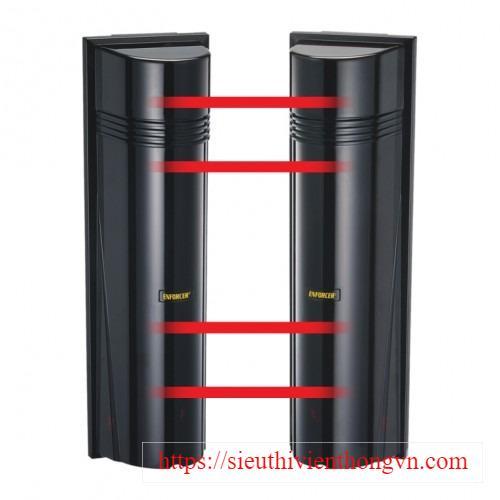

ENFORCER E-964-Q660Q
- MS 000004034
- SECO-LARM
Giá : 6,095,000 vnđ (Đã bao gồm VAT)
ENFORCER Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
Built-in laser beam alignment system speeds accurate, reliable positioning
Multi-frequency (4 channels selectable)
Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use
Anti-frost system with built-in heater so that beam functions even in extreme conditions
Automatic input power filtering with special noise rejection circuitry
NO/NC alarm output
N.C. tamper circuit included
Non-polarized power inputs
Quick, easy installation with built-in laser beam and audible alignment system
Built-in alignment strength indicator
Interruption time adjustable for nearly all situations
