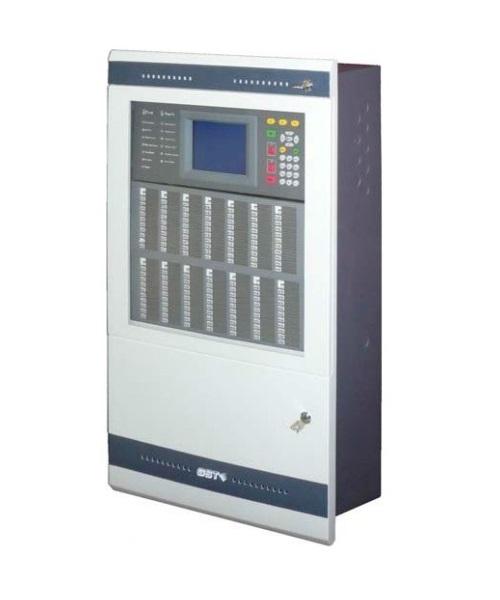

Trung tâm báo cháy địa chỉ 8 loop GST GST-IFP8
- Listed to LPCB.
- 8 x Loops (242) capacity (1936) addressable points.
- Maximum 10 Loops Standalone.
- Modular constructed for future expansion.
- 40 x15 lines Colour Graphical LCD Display.
- Up to 999 programmable zones and 140 zone indication.
- Auto Programming Day and Night Mode.
- Enable and Disable function.
- PAS and Acknowledge Function.
- Dirty Detector Reporting.
- Duplicate Address Checking.
- Device Mismatch.
- Walk Test Function with optional silent.
- Can edit device detailed and programmed.
- Programmable form PC or Panel.
- History record-999 fire incident only and 999 event capacity in non-volatile memory Fully simulation of Cause and Effect.
- Advanced user friendly programming software including ‘Fuzzy Logic’.
- Networked with all GST Intelligent Fire panels up to 99 Nodes, Optional Fiber Optic and LAN Network Interface.
- RS 485 mimic and repeater output up 64.
- RS 232-USB CRT interface, including GSTGMC graphic.
- Built in Fire Alarm, FPE, Fault and Alarm Router output
- Panel Printer included.
- Built in Battery charger mode.
Thông số kỹ thuật
- Standard: EN54 Part 2/4; BS5839 Part 4.
- Approvals: LPCB.
- Main Input Voltage: 220 ± 10% VAC 50/60Hz.
- Input Current Rating: 1Amphere.
- System Operating Voltage: 24 VDC Nominal (20-27 VDC).
- Loop Capacity: Loop 10:242- Address per loop.
- Loop Length:
+ 1.00mm²-800M-Full Load;
+ 1.5mm²-1.2Km-Full Load;
+ 2.0mm²-1.5Km-Half Load.
- Loop Topology: Class A and Class B.
- Zone Capacity: 999 Zones programmable.
- Sounder Circuits:
+ Fire Routing: 200mA /24Vdc/4.7KΩ EOLR;
+ F.P.E. Output: 500mA /24Vdc/4.7KΩ EOLR;
+ Sounder Circuit Output: 1A /24Vdc/4.7KΩ EOLR;
+ Dry Contact: Optional C-9302 module.
- Fuses:
+ Mains 2A (20mm A/S ceramic);
+ Battery: 2A (20mm A/S HRC ceramic).
- Common Fault Relay Output: Volt-free changeover 1.0A at 24 VDC.
- 24 VDC Fused Output: Maximum load 500mA at 17-28VDC.
- Standby Batteries: Twin 12 Vdc Bat; 38AH.
- Battery Charging Current Limit: 2A/24VDC.
- Bảo hành: 12 tháng.
