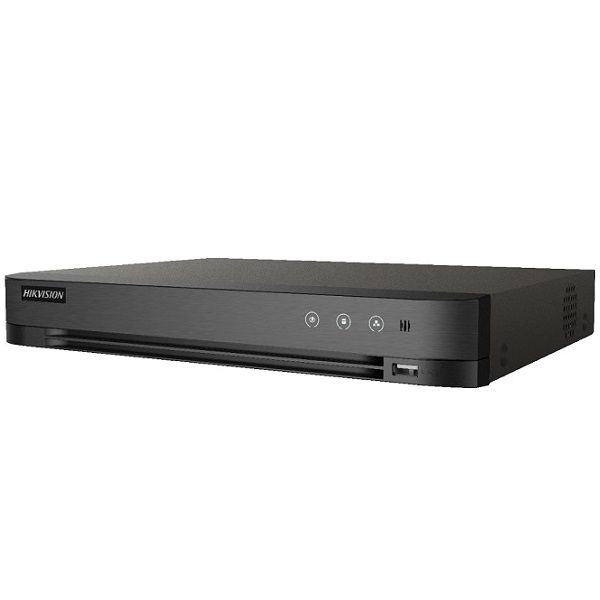

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION iDS-7204HTHI-M1/S(C)
- Đầu ghi Hybrid TVI-IP 4K hỗ trợ HDTVI/HDCVI/AHD/CVBS/IP.
- Hỗ trợ camera IP lên đến 8MP.
- Chuẩn nén video: H.265 Pro+/H.265 Pro/H.265.
- Chuẩn nén H265 PRO+ giúp giảm băng thông và tăng thời gian lưu trữ gấp 4 LẦN so với chuẩn H.265.
- Tương thích với tín hiệu ngõ ra: l cổng HDMI và VGA xuất hình độc lập.
- Độ phân giải ngõ ra HDMI: 4K (3840 × 2160).
- Hỗ trợ cổng CVBS.
- Hỗ trợ 1 ổ cứng lên đến 10TB.
- Hỗ trợ 1 cổng SATA.
- Hỗ trợ Hik-Connect & DDNS (Dynamic Domain Name System).
- Hỗ trợ add tối đa 8 camera IP (khi giảm số kênh TVI).
Đặc tính kỹ thuật
| Model | iDS-7204HTHI-M1/S(C) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported |
| Perimeter Protection | |
| Line Crossing Detection/ Intrusion Detection | 4-ch |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Frame rate | Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video bit rate | 32 Kbps to 6 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
| IP video input | 4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS input | PAL/NTSC |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDMI output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video output mode | HDMI/VGA independent output |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 4-ch |
| Network | |
| Total bandwidth | 96 Mbps |
| Remote connection | 32 |
| Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Wifi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 12VDC, 2A |
| Consumption (without HDD) | ≤ 10 W (without HDD) |
| Working temperature | -10 °C to 55 °C |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 315 × 242 × 45 mm |
| Weight (without HDD) | ≤ 1.8 kg |
- Bảo hành: 24 tháng.
