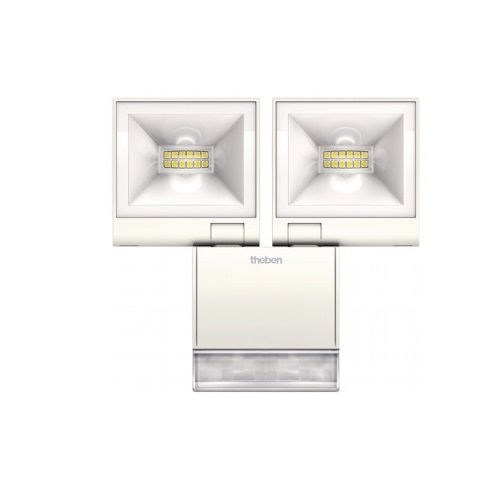

LED Spotlight with Motion Detector THEBEN theLeda S20 W WH
- Part Number: 1020933.
- LED spotlight with motion detector.
- 2 LED spot with 10W each (equivalent to 2x140W Halogen spotlight).
- Spotlights can be swivelled ± 20° horizontally, and adjusted 70° downwards.
- Suitable for outdoor use.
- Automatic lighting control based on presence and brightness.
- 180° detection angle at a detection range of 10m.
- Area limit via lens attachment.
- Orientation light with configurable dimming level.
- Short and extended function via manual control system.
- Integrated heat sink in housing color.
- Direct-LED for maximum light output.
- High-tech matrix-LED module.
- Single-handed plug-in installation.
- Instant start-up possible via factory preset.
- Adjustable lux value and switch-off delay.
- Settings can be changed without tools.
Đặc tính kỹ thuật
Model | theLeda S20 W WH |
Operating voltage | 230 V AC |
Frequency | 50 – 60 Hz |
Stand-by consumption | ~0,4 W |
Light measurement | Mixed light measurement |
Colour | White |
Switching output | Light |
Installation type | Wall installation |
Setting range brightness | 2 – 200 lx |
LED output (lighting current) | 2 x 840 lm |
Colour temperature | 3000K, warmwhite |
Detection angle | 180° |
Installation height | 1,8 – 2,5 m |
Light switch-off delay | 2s -30 min |
Ambient temperature | -20°C - +45°C |
Protection class | I |
Type of protection | IP55 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
