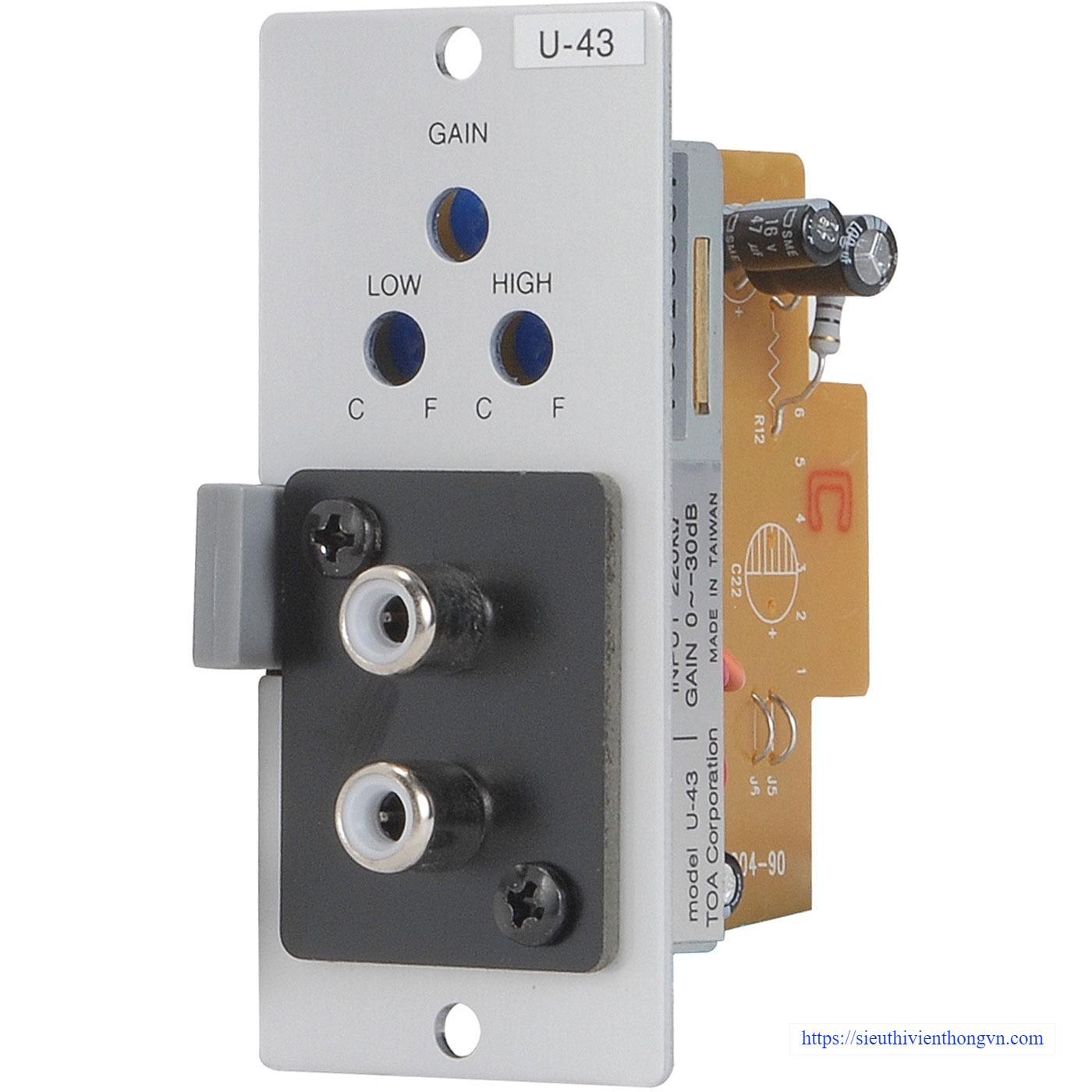

Mạch tiền khuếch đại AUX TOA U-43R
The U-43R is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output.
Specifications
| Model | U-43R |
| Power Source | 24 VDC |
| Current Consumption | Less than 15 mA |
| Input Sensitivity (Rated Output 100 mV ) | 100 - 3,600 mV (adjustable) |
| Low Cut Filter (100 Hz) | -5 ~ -15 dB |
| High Cut Filter (10 kHz ) | -7 ~ -13 dB |
| Noise Output (20 Hz - 20 kHz BPF) | Less than 10 μV |
| Distortion | Less than 0.05 % |
| Frequency Response | 20 Hz - 20 kHz |
| Signal-Activated Muting | 6 - 15 mV RCA phone jack 6P card edge-connector |
| Dimensions | 35 (W) × 78 (H) × 88 (D) mm |
| Weight | 50g |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
