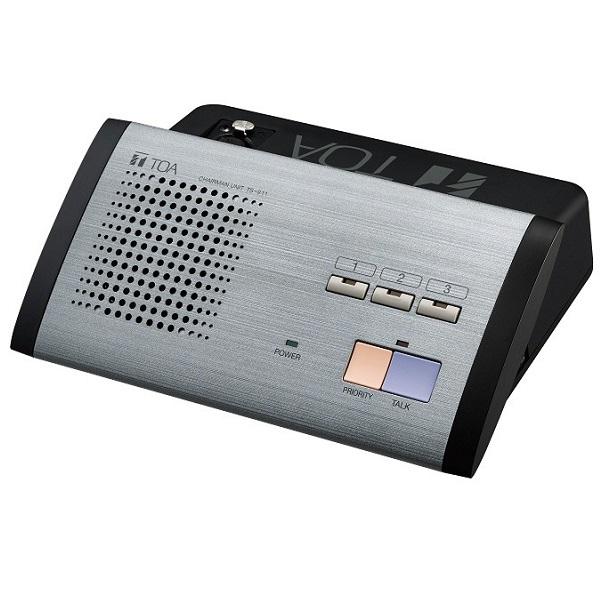

Máy chủ tọa TOA TS-911
The TS-911 is a Chairman unit with voting function that can be connected to the conference system by a cable. It is equipped with a priority switch, allowing speech to take precedence over the Delegate unit. The TS-911 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.
Đặc tính kỹ thuật
| Model | TS-911 |
| Power Source | 24 V DC |
| Current Consumption | Max. 60 mA |
| Modulation Method | Frequency modulation |
| Carrier Frequency | Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz |
| Input | Microphone terminal: XLR-4-31 type |
| Output | Monitor speaker: 8 Ω, 0.2 W Headphone: φ3.5 mm mini Jack (3P: monaural) × 2 |
| Connection Terminal | RJ45 connector |
| Function | Monitor volume control, Headphone volume control, Priority speech function, Voting function, Monitor selector switch (MAIN/SUB) |
| Finish | Top panel: ABS resin, gray metallic, paint, semi-gloss |
| Dimensions | 210 x 68.6 x 152 mm |
| Weight | 570g |
- Sản xuất tại Việt Nam.
- Bảo hành: 12 tháng.
