Máy đại biểu TOA TS-682

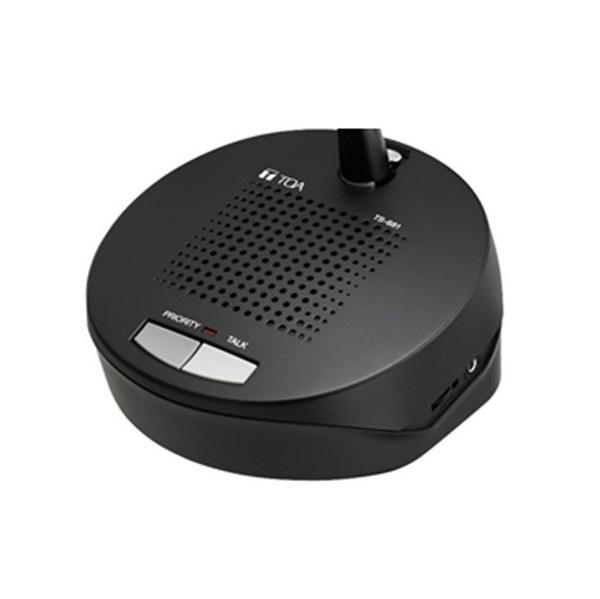

- The TS-682 is a Delegate unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store.
- Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback.
- If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored.
- Two types of dedicated microphones are made available for the TS-682 as optional products: the TS-773 standard type and the TS-774 long type.
Specifications
| Model | TS-682 |
| Power Source | 36 VDC, 30 mA or less (supplied from the Central Unit TS-680-AS) |
| Output | Headphones/Recording: 32 Ω (headphone)/ 10 kΩ, -20dB (recording), unbalanced, mini jack (with Volume control) Internal speaker: 130 Ω, 200 mW (with Volume control) |
| Control | Talk key: Microphone, speaker on-off by talk key Volume control: Headphone output and internal speaker volume adjustable |
| Finish | ABS resin, black, paint |
| Dimensions | 145.3 x 70.7 x 150.5 mm |
| Weight | 800g |
| Option | Extension cord: YR-780-2M, YR-780-10M Microphone: TS-773 (standard), TS-774 (long) (select either one) |
- Sản xuất tại Việt Nam.
- Bảo hành: 12 tháng.
