Module cách ly Loop COFEM KABY
- Microprocessed algorithmic element installed as another element inside the loop (It is not addressable-There is not need to configure this element).
- This is a protection element that is connected into the detection loop, with the aim of isolating stretches with crossed line failures, and allowing therefore the rest of the loop to operate normally.

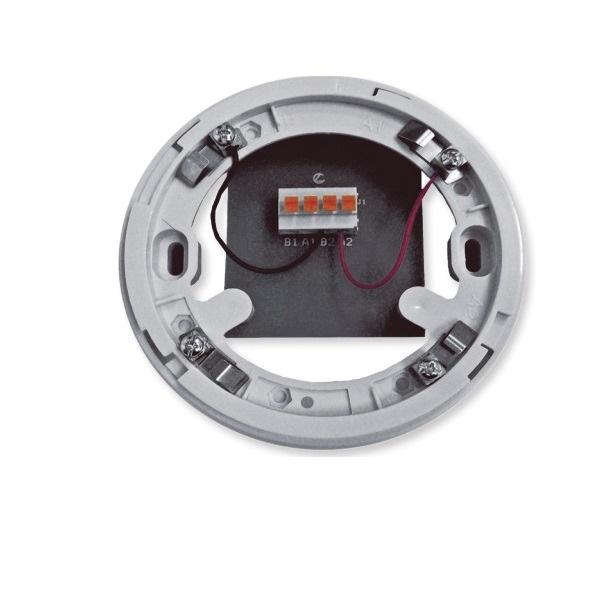

- It is supplied installed inside of a high base. This assembly allows having it in the same place as the detector, making easy the connection of the loop wiring.
- We recommend installing a module or element with isolator, minimum every 32 elements of the loop.
- The base has two stickers in the outer side with the word “KABY” to allow easy recognition.
- The element is feed from the loop connection.
- The module is certified according to EN 54-17 Standard, and CE labelled according to the European Regulation of Construction Products (UE) N°305/2011.
Đặc tính kỹ thuật
| Model | KABY |
| Power Supply | 24 - 35V with polarity |
| Standby Current | 110 µA |
| Short-Circuit Isolator | Yes |
| Remote Indicator Output | No |
| Humidity | 20 - 95% RH |
| Temperature | -10ºC + 50ºC |
| Standard | EN 54-17 |
| IP Protection | IP30 |
- Bảo hành: 12 tháng.
