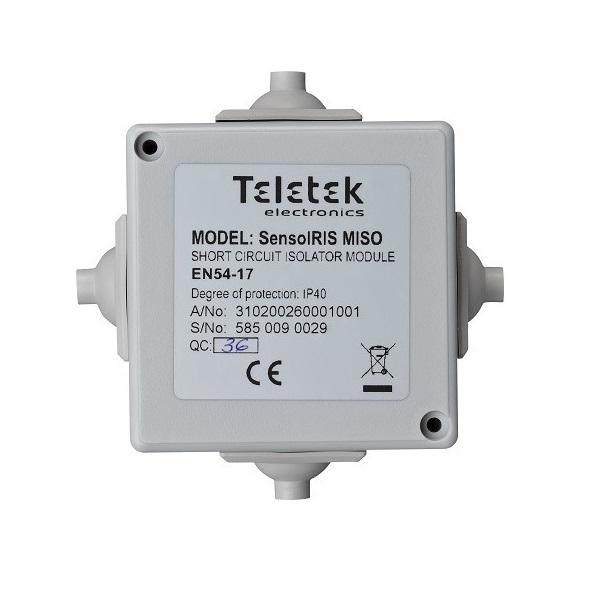

Module cách lý TELETEK SensoIRIS MISO
- SensoIRIS MISO is a short circuit isolator module designed for addressable fire alarm systems, which support TTE communication protocol.
- The short circuits isolators prevent switching off the loop in case of short circuit fault, as they isolate that part of the loop, with a short circuit. When the cause for the short circuit fault is removed, the isolator modules automatically restore the continuity of the loop.
- The short circuit isolator module is mounted in a separate plastic box suitable for wall mounting. The openings for cables running are protected with rubber caps.
- When installing the module in the system cut only the top of the caps through which you are running the cables.
- Placed in plastic box with cable running holes for easy installation.
- Max number of devices bewteen two isolators – 30.
Đặc tính kỹ thuật
| Model | SensoIRIS MISO |
| Operating Voltage Range | 15 – 32VDC |
| Max. Isolator Resistance | 0.18Ω@27VDC/ 0.25Ω@15VDC |
| Nom. current consumption | 200μА |
| Wire Gauge for terminals | 0.4mm2 – 2.0mm2 |
| Operating temperature | -10°C to +60°C |
| Degree of Protection | IP40 |
| Weight | ~185g |
| Dimensions | 71 x 71 x 40mm |
- Bảo hành: 12 tháng.
