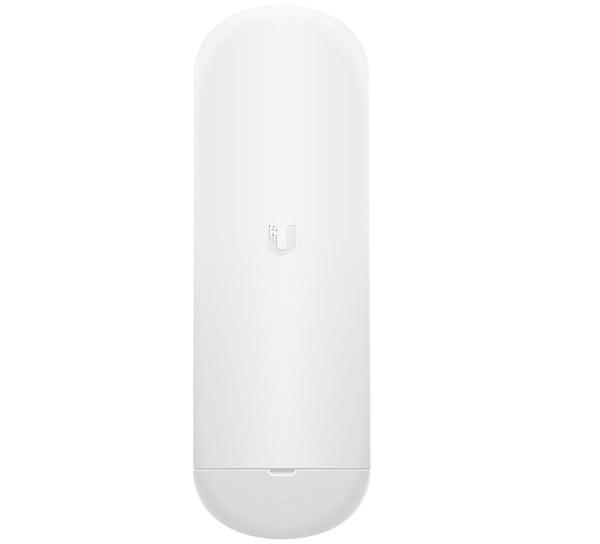

Thiết bị kết nối vô tuyến UBIQUITI NanoStation AC
Model: NS-5AC
- Chuẩn: IEEE 802.11 a/n/ac
- Chế độ hoạt động: AP, WDS Point-to-Point, Point-to-MultiPoint.
- Throughput: 450+ Mbps.
- Cổng LAN: 2 x 10/100/1000Mbps port.
- Công suất phát: Mạnh.
- Góc phát sóng: 45°.
Đặc tính kỹ thuật
| Model | NS-5AC |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Max. Power Consumption | 9W |
| Power Method | 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 16 dBi |
| Networking Interface | (2) 10/100/1000 Mbps Ethernet Ports |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | UV Resistant Polycarbonate |
| LEDs | (1) Power, Eth1, Eth2; (1) Signal Strength |
| Mounting | Pole-Mount |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| ESD/EMP Protection | ±24kV Contact/Air |
| Shock & Vibration | ETSI300-019-1.4 |
| Dimensions | 257 x 84 x 30 mm |
| Weight | 233 g |
- Bảo hành: 12 tháng.
