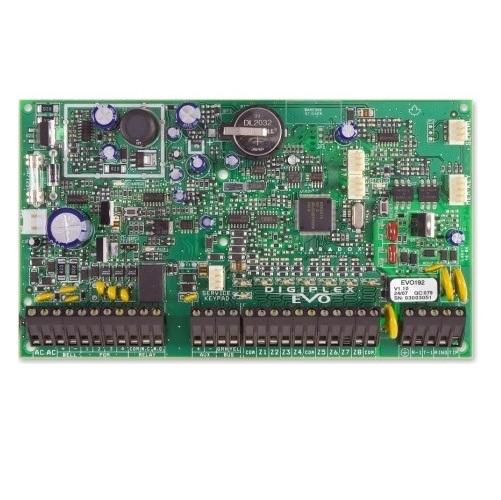

Bảng điều khiển 192 vùng có dây PARADOX EVO192

Bảng điều khiển 192 vùng có dây PARADOX EVO192

  • MS 0015467
  • PARADOX
Giá : Liên hệ

Bảng điều khiển 192 vùng có dây PARADOX EVO192

Bảng điều khiển 192 vùng có dây PARADOX EVO192

- 8 on-board zones (16 w/ zone doubling)

- Built-in access control features

- Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)

- In-field firmware upgrade via 307USB, Babyware and WinLoad

- Selectable input resistors for EOL and Tamper

- Compatible with NEware V4.0 or higher

- Automatic Daylight Savings Time feature

- PGM1 can be used as a 2-wire smoke input

- Program remote controls using the master or installer codes

- Built-in real-time clock backup battery

- 1.7A switching power supply

- 1 supervised bell output, auxiliary output and telephone line

- Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents 5751803, RE39406)

- Push button software reset (reset to default values and restart)

- Push button to activate or deactivate the Auxiliary output

- Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box

- The EVO series share the same programming for easy panel substitution

- EN 50131 grade 3

Specifications

ModelEVO192
Maximum Zones192
On-Board Zones8 (16 with ATZ)
Partitions8
Users999
In-Field Firmware UpgradeableYes
Access Control32 doors
Events Buffered2048
PGMs250 (5 on board)
SirenWired
Total Expansion Modules254
Landline Speed for Programming300 Bps
Internal Power Supply1.7A switching
Input Voltage16 VAC, 20 / 40 VA, 50-60 Hz
Battery12 VDC, 7 Ah minimum
Battery Charging Current350 mA / 850 mA
Auxiliary Output12 VDC, 700 mA, fuseless shutdown at 1.1A
Bell Output1A, fuseless shutdown at 3A
PGM OutputPGM1 to PGM4: 100 mA solid-state relays with +/- trigger PGM5: Form C relay output rated at 5A / 28 VDC N.O. / N.C.
Operating Temperature-10 to 55°C

- Thương hiệu của CANADA.

- Bảo hành: 24 tháng.
