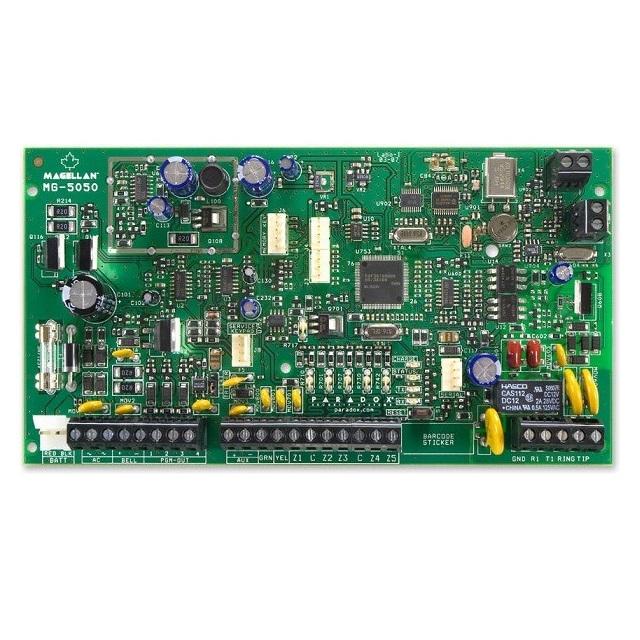

Bảng điều khiển không dây 5 vùng PARADOX MG5050

Bảng điều khiển không dây 5 vùng PARADOX MG5050

  • MS 0015465
  • PARADOX
Giá : Liên hệ

Bảng điều khiển không dây 5 vùng PARADOX MG5050

Bảng điều khiển không dây 5 vùng PARADOX MG5050

- StayD Mode

- Built-in transceiver (433MHz or 868MHz)

- 32 zones (any of which can be wireless)

- 32 users and 32 remote controls (one per user)

- 2 partitions

- 4-wire communication bus (connect up to 15 keypads)

- Supports REM3 hand-held remote keypad

- Supports up to 8 K32RF / K37 wireless keypads

- Supports up to 2 RPT1 wireless repeaters

- Supports PCS Series

- Supports IP100 Internet Module

- Supports VDMP3 Plug-in voice dialer

- Supports 16 PGMs (any of which can be wireless)

Đặc tính kỹ thuật

ModelMG5050
Built-In TransceiverYes
Supported Zones32, 5 on-board (10 with ATZ)
Keypad Zones15
Partitions2
Users/ Remote Controls32
PGMs16 maximum (4 on-board I/O)
Events Buffered256
Wireless Repeaters2
SirenWired / Wireless
Wireless Sirens4 (SR130 / SR150)
Wireless Keypads4 (K32RF / K37)
Expansion BusYes
GPRS/ GSM Module (PCS Series)Yes
Voice and Utility Reporting & User MenusVDMP3
Personal DialingYes
In-Field Firmware UpgradeYes
RF Jamming SupervisionYes
Input Voltage16.5VAC (50 or 60 Hz) minimum 20VA
Auxiliary Current700 mA maximum, fuseless shutdown at 1.1A
RF Frequency433 or 868 MHz
Battery12 VDC, 4Ah / 7Ah
Battery Charging Current350 mA or 700 mA
PGM Output3 x 100mA open-collector and 1 x 100mA solid state
Bell Output1A (fuseless shutdown at 3A)
Operating Temperature0 to 50°C
Dimensions19 x 10 x 3 cm

- Thương hiệu của CANADA.

- Bảo hành: 24 tháng.
