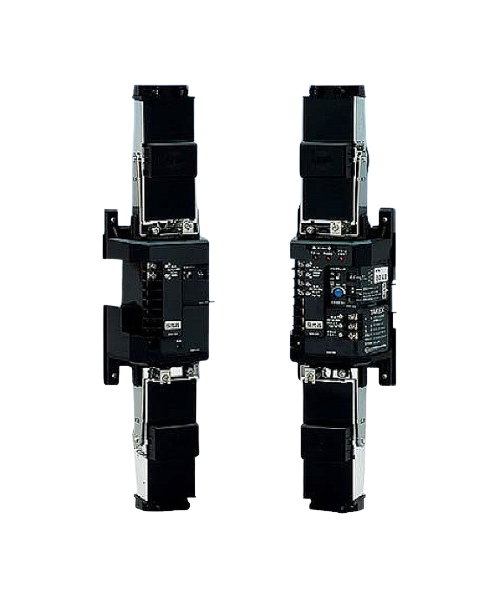

Photoelectric Beam Sensor Outdoor TAKEX PB-100AT-KH(R)(E)
- Four Frequency Selection: 4 separate choices of frequency avoids cross-talk in stacked or long linear installations.
- Dual Response time system
+ Two individual response times are provided for separate adjustment of AND/OR gates.
+ This enables detection of intruders, but minimizes false alarms.
- Beam Transmission strength selection: 2 levels of beam transmission strength which can be set to suit the protection distance.
- Auto-Gain Lock: Optimal sensitivity gain is automatically set at any coverage distance up to the maximum protection distance. Auto-Gain lock is easily confirmed by sound check.
- Easy Beam Alignment:
+ Audible signal for alignment [Utility model] ... An alignment tone aids in quick set-up beams. The tone becomes maximum at peak of beam level.
+ Beam selector ... Upper and lower beam alignment can be adjusted without using a shading plate.
+ Sensitivity attenuation LED ... Lights when beam level is attenuated, which shows low sensitivity.
+ Monitor jack output.
- Programmed AGC: Sensitivity is automatically increased in bad weather to contend with fog, heavy rain, frost or snow.
- Environmental module built-in: Environmental trouble signal is sent when beam reception level is reduced below an acceptable level.
- Protection Against Frost/Dew: As a special hood is attached on sensor cover, beam protection continues without interruption even when the cover is screened by frost or dew.
Thông số kỹ thuật
| Model | PB-100AT-KH(R)(E) |
| Detection system | Near infrared beam interruption system (TR,-RE 4 beams simultaneous interruption or upper 2 beams interruption or lower 2 beams interruption) |
| Infrared beam | Double modulation pulsed beam by LED |
| Protection distance | Outdoor 330' (100m) or less |
| Max. arrival distance | Tenfold 3300' (1000m) |
| Responce time | Dual response time system 0.035-0.5sec. (AND gated) 0.1, 0.2, 0.3, 0.5sec. (OR gated) |
| Power supply | 10V to 30V DC (non-polarity) |
| Current consumption | 85mA or less at protection (Max. 120mA or less) |
| Alarm output | Dry contact relay 1c Reset : Interruption time + off-delay (approx. 1.5 sec.) Contact capacity : 30V AC / DC, 1A or less |
| Environmental output | Dry contact relay: 1c Contact operation : Output when weather condition gets worse Contact capacity : 30V AC / DC, 1A or less |
| Alarm LED | Red LED (receiver) lights when an alarm is initiated |
| Sensitivity attenuation LED | Red LED (receiver) lights when beam reception is attenuated |
| Functions | Modulated beam frequency selection, Tone indicator, Environmental module, |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
