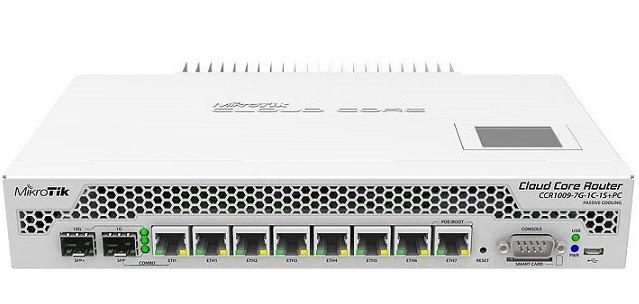

Router Mikrotik CCR1009-7G-1C-1S+PC
- No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
- Combo-port - a single 1Gbit software interface that has two hardware interfaces - a SFP cage and a Gigabit.
- Ethernet port, allowing you to use any type of connection available to you. Port also allows to switch from one to another interface from software, or in event of disconnect, providing new, unique hardware fail-over feature.
- 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
- More throughput - due to how ports are connected to CPU, new CCR1009 models can achieve higher theoretical throughput.
- The CCR1009-7G-1C-1S+PC additionally includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.
Đặc tính kỹ thuật
| Product code | CCR1009-7G-1C-1S+PC |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 272 x 190 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $495.00 |
Powering | |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 33 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
Ethernet | |
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber | |
| SFP+ ports | 1 |
Peripherals | |
| Number of SIM slots | 1 Smart card (Mini SIM) |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
- Bảo hành: 12 tháng.
