FEATURES HIGHLIGHTS

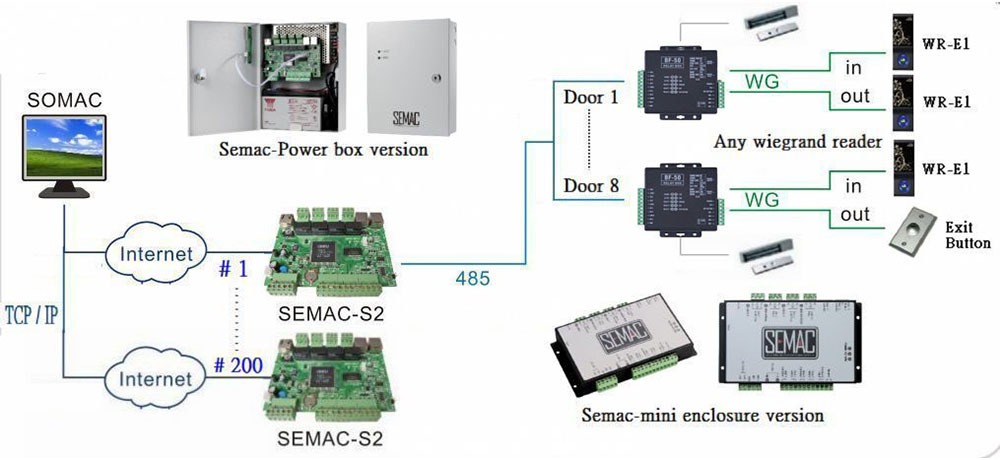

• Compatible with Biosense / BF-630 / BF-830 / SEMAC / WEBPASS / WG Reader, you could use BF-50 for single or multi doors control structure.
• To detect door sensor is short circuit or open circuit.
• Built-in Watch-dog (Watch Dog).
• 2 Wiegand inputs (Indoor / Outdoor), users could choose any brand of Wiegand reader for using.
• Integration Design: Integrate with exit button, door sensor, and Wiegand reader device. It is easy for installation and also save the operating cost.
• RS485 communication control relay for providing the high security level. In the emergency mode, when controller is disconnected, exit button still could have function.

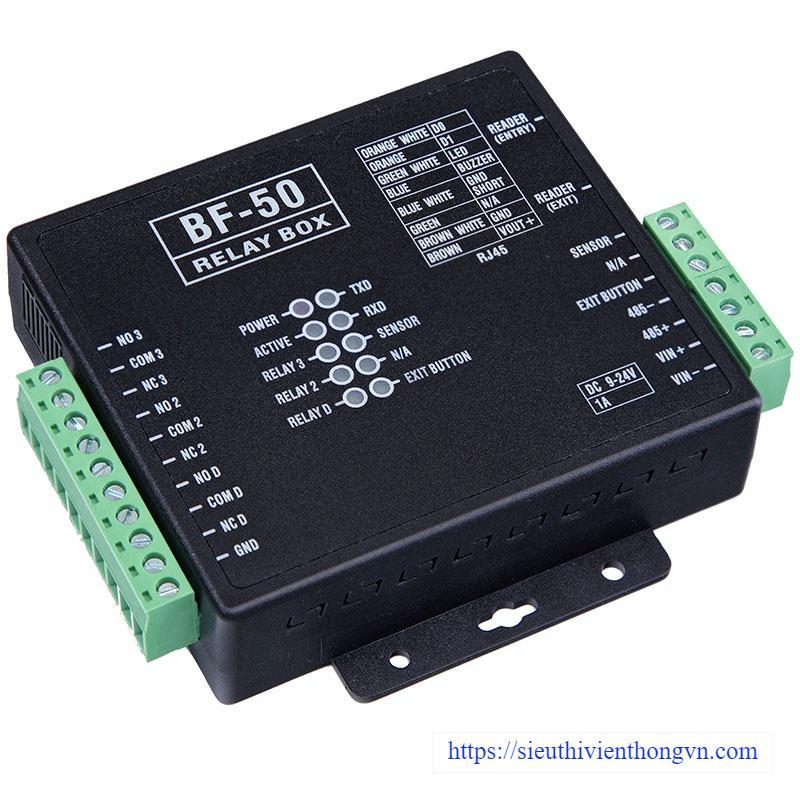

PRODUCT SPECIFICATION

• Wiegand Input: 2 (WG26 / 34 Auto detect)
• Communication Interface: RS-485
• Watch Dog: System halt prevention
• Door Relay (Relay D): 1 (3A / 30VDC)
• Alarm Relay: 2 (3A / 30VDC)
• Dry contact for Exit Button: 1
• Dry Contact for Sensor Self-detecting: 1
• Dry Contact for Reader Detecting: 2
• LED Indicator for Reader: 2
• Dry Contact for Buzzer Control: 2
• Emergency Mode Contact: Yes (in the emergency mode, when controller is disconnected, exit button still could have function)
• Detect Door Sensor: Yes
• Buzzer: Enable / disable
• Maximum RS-485 Distance: 1000 m
• Maximum Distance for Wiegand: 80 m
• Door Number Setting: DIP Switch
• Rated Power: 9 ~ 24V DC
• Rated Current: 200mA ~ 400mA
• Operation Temperature: 0°C ~ 55°C
• Storage Temperature: -20°C ~ 75°C
• Storage Humidity: 5%~ 80% RH
• Dimension: 106 x 100 x 26.5 mm
• Weight: 140 g
