Trung tâm báo cháy 1-6 loop GST IFP4M (UL)

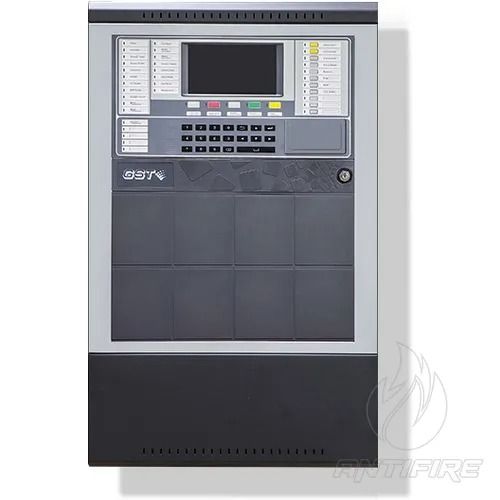

GST-IFP4M Addressable Fire Alarm Control Panel





 Features

☆ Wide range power supply 100-240V 50/60Hz
☆ Bulit-in multi Languages
☆ Programing via PC or panel keypad and touch screen
☆ USB port for system configuration and firmware update
☆ Password and key-protected nonvolatile memory
☆ Support USB dongle for securing project database
☆ History records of 100,000 events
☆ “Walk test”, silent or audible
☆ PAS (Positive Alarm Sequence) per point
☆ Optional Redundancy CPU
☆ CAN/Fiber Networking, Panel grouping
☆ 7-inch Touch Screen 800 x 480
☆ Support up to 6 loops in Class A style
☆ 242 addressable devices per loop mixing various types of devices, Max. 1452 addresses
☆ Support up to 32 ZCP panel with individual programmable buttons & LED indicators. Max 8 ZCP panels for wall mount cabinet)
☆ 2 Power Limited Class B Notification Appliance Circuits (NAC), total load Max.2.5A/24VDC. The 2nd NAC can be set as AUX.
☆ 1 user defined input
☆ 5 system outputs (Form C contact), Fire, Trouble, Supervisory/F.P.E. and 2 User defined
☆ Built-in printer and additional USB printer interface port for external printer
☆ Built-in protocol to voice alarm system, communicate via onboard RS232 port
☆ Support BACnet and Modbus
☆ UL listed

 Technical Specifications

☆ Standard: UL864 10th Edition / NFPA72
☆ Main Input Voltage: 220/230 VAC (+10/-15%) 50/60 Hz
☆ Input Current Rating: 3.0A (120VAC) or 1.5A (220VAC)
☆ System Operating Voltage: 24 VDC Nominal
☆ Loop Capacity: 6
☆ Devices Capacity: 242 devices per loop
☆ NAC outputs:2 Class B, Power-limited NAC, Max current total 2.5A@24VDC
☆ Relay Outputs (5): 2A@24VDC
☆ Operating Environment: 32-120° F, ≤93% RH, non-condensing
☆ Dimension: 516mm(W) x 840mm(H) x 180mm(D)



Optional Components
Model numberDescription
MP-401*CPU Card / Redundant CPU Card
LC-401Single Loop Card
LC-402Dual Loop Card
P-9966ACAN Class A network card
P-9983Fiber-optical Network Card
P-9956-ModbusModbus Card
P-9981Zone Display Panel, Bi-color LED x40
P-9981FZone Display Panel, R-LED x20, Y-LED x20
P-9982Zone Display & Control Panel, Bi-color LEDx40,Buttonx20
P-9982FZone Display & Control Panel,R-LEDx20,Y-LED x20,Buttonx20
*There is one MP-401 in the standard configuration and another one is required to realize the redundancy function.
