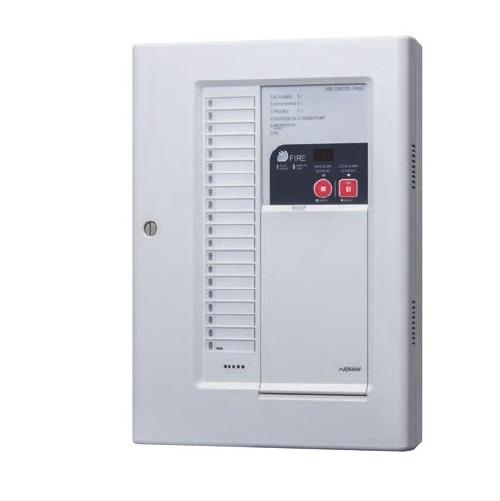

Trung tâm báo cháy 20 kênh NOHMI FAPN105N-R-20L
- The FAPN105N series fire alarm panel was developed to improve panel-front recognize-ability and functional operability from the viewpoint of users.
- 20-zone fire alarm panel.
- Alarm verification type (Verification time: 60 seconds).
- Various test functions: fire indication test, alarm verification time test, auxiliary power supply test, automatic after-test resetting.
- Self-diagnosis system.
- Misoperation inhibit function.
- Built-in telephone system.
- Back-up power supply (Ni-Cd battery, 24VDC).
- Large fire alarm symbol for for easy visual recognition.
- Fire zone indication by both zone nameplates and a digital display.
- History list for last 1000 events.
- 3 auxiliary LED indicators.
- General fire alarm cut-off switch.
- Functions programmable at site.
- 4 programmable option switches for signal cut-off.
- Built-in surge arrester for power lines.
- 10 programmable dry contacts interlocked by zone alarm signals.
Đặc tính kỹ thuật
| Model | FAPN105N-R-20L |
| Type | Conventional type |
| Power supply | 220VAC 50/60Hz |
| Auxiliary power supply | Ni-Cd battery (24VDC, 0.45Ah) |
| Circuits voltage | 5, 24, 48VDC, 24VAC |
| Alarm verrification time | Thermal detector: 10sec.; Smoke detector: 60 sec |
| Power consumption | Monitoring: approx. 30V Alarm: approx.68VA |
| Maximum number of devices supported | Spot type smoke detectors: 30/zone (max. 300/10-zone, 600/20-zone) Alarm bells: 30 (24VDC, 10mA/bell) Location lamps: 7 (30V, 2W/lamp); 29 (24VDC, 15mA/lamp) |
| Ambient temperature and humidity | 0 to 40°C, 20 to 85% (RH) |
| Alarm input circuit loop resistance | Less than 50Ω/Loop |
| End-of-Line resistor | 10kΩ, 1/2W |
| Materials (enclosure) | ABS resin with 94UL-V2 flammability rating |
| Color | Off-white (Nohmi White): Approximating Munsell N8.7 or equivalent |
| Weight | Approx. 4kg |
| Dimensions | 480mm (H) x 340mm (W) x 90mm (D) |
- Bảo hành: 12 tháng.
