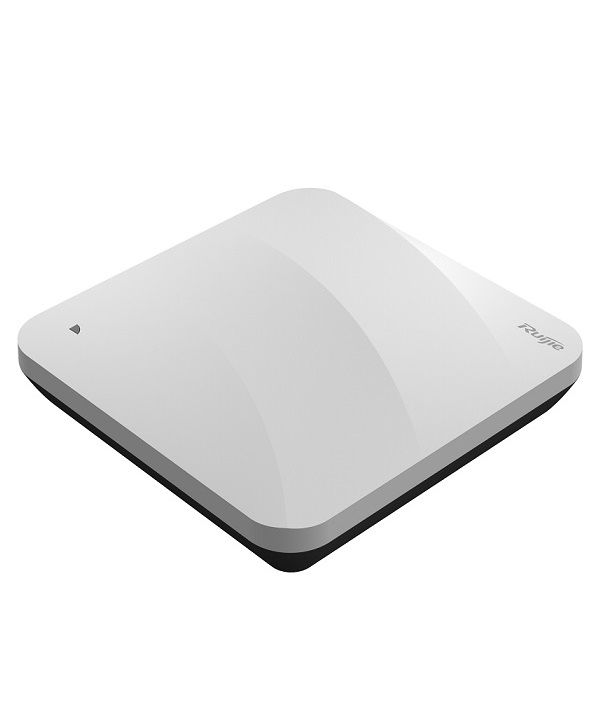

Wi-Fi 6 AX1800 SME Access Point RUIJIE RG-AP810-L
- Ruijie RG-AP810-L is a cost-effective entry level wireless access point with Wi-Fi 6 dual-radio, dual-band design. It not only has the simplicity and flexibility for small and medium sized enterprise, but the features, functionality, and performance quality to scale up to large-enterprise network deployments.
- Ruijie RG-AP810-L supports maximum of 1.775Gbps wireless throughput when 80MHz bandwidth in 5G radio mode adopted (HE80). It fully complies with Wi-Fi 6 features and guarantees minimal signal interference and maximum 512 clients.
- Maximum ROI (Lifetime free cloud management & WIS optimization service).
- HE80 Supported for Higher Throughput with Latest Wi-Fi 6 Chipsets.
- Hybrid Management (Cloud/Controller/Standalone).
- Automated Radio Optimization by Artificial Intelligence.
Specifications
| Physical | |
| Dimensions (W × D × H) | 220mm×220mm×49mm |
| Weight | Device: 0.6kg Mounting Kit: 0.2kg |
| Installation | Ceiling / Wall |
| Anti-theft Lock | Support |
| Radio | |
| Radio | Dual-radio dual-band: Radio1: 2.4GHz 11ax, 2×2 MIMO Radio2: 5GHz 11ax, 2×2 MIMO |
| Operating Band | Radio 1: 802.11b/g/n/ax, 2.4GHz～2.483GHz, HE40 Radio 2: 802.11a/n/ac/ax, 5.150GHz～5.350GHz, HE80 802.11a/n/ac, 5.470GHz～5.725GHz, 5.725GHz～5.850GHz, HE80 Note: vary depending on different countries |
| Max Throughput | Radio 1: 2.4GHz, 0.574Gbps Radio 2: 5GHz, 1.201Gbps Maximum throughput per AP: 2.4GHz+5GHz, 1.775Gbps |
| Antenna Type | Integrated Omnidirectional |
| Antenna Gain | 2.4GHz: 2dBi 5GHz: 2dBi |
| Transmit Power | 20dBm Note: vary depending on different countries |
| Adjustable Power | 1dBm |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA |
| Interfaces | |
| Interfaces | 1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af) Full Spectrum Operation in IEEE 802.3af Mode |
| Bluetooth | BT 5.1 |
| Management Port | 1 RJ45 Console Port |
| LED Indicator | 1 LED Indicator |
| Reset Button | Support |
| Power | |
| Power Supply | Local Power Supply (DC 48V/0.6A) Note: DC power adapters should be purchased separately from third-party vendors if needed. PoE (IEEE 802.3af Standard) - Full Spectrum Operation |
| Power Consumption | 12.95W |
| Environment | |
| Temperature | Operating Temperature: -10°C～50°C Storage Temperature: -40°C～70°C |
| Humidity | Operating Humidity: 5%~95% (non-condensing) Storage Temperature: 5%~95% (non-condensing) |
| IP Rating | IP41 |
| Safety Standard | GB 4943.1-2011, IEC 62368-1 |
| EMC Standard | EN 300386, GB/T 19286-2015, GB/T 17618-2015 |
- Bảo hành: 3 năm.
