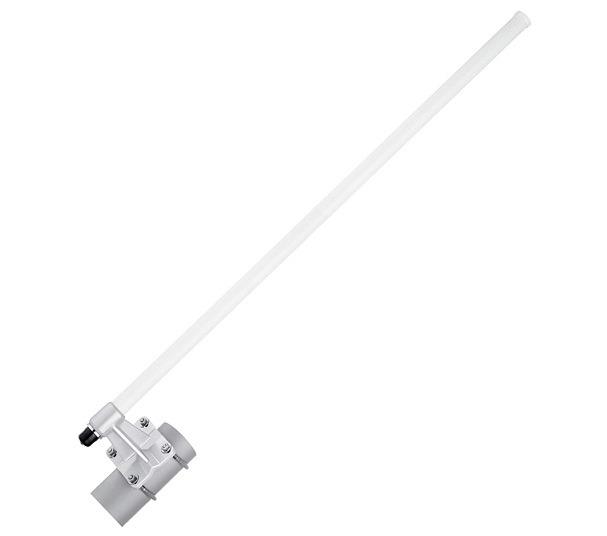

Wireless 2.4 & 5GHz Dualband Outdoor 8 dBi omni-directional Antenna D-Link ANT70-0800
- D-Link’s ANT70-0800 Dual-Band Omni Directional Antenna is suitable for outdoor installation. It provides a Gain of 8dBi for 2.4GHz band and 10dBi for 5GHz band to give your wireless network an extended operating range. For best performance, users can use an antenna of the same Gain or higher, at the other end of the connection to take advantage of this antenna’s powerful signal transmission.
Specifications
| Model | ANT70-0800 |
| Frequency Range | 2400 MHz to 2500 MHz 5100 MHz to 5900 MHz |
| Peak Gain | 8dBi (2.4GHz frequency band) 10dBi (5GHz frequency band) |
| Polarization | Linear Vertical |
| Horizontal Half Power Beam Width | 360º |
| Vertical Half Power Beam Width | 13º (2.4GHz) 7-10º (5GHz) |
| Front to Back Ratio | 15dB |
| Downtilt | 0° |
| Power Handling | 5W |
| Impedance | 50Ω |
| Connector | N Jack (built-in) |
| Mounting Type | Pole |
| Survival Wind Speed | 216 km/hr |
| Material | Glass Fiber, UV resistant |
| Weight | 1.03 kg |
| Dimensions | 1220 (L) x 75 (W) x 80 (H) mm |
- Bảo hành 12 tháng.
