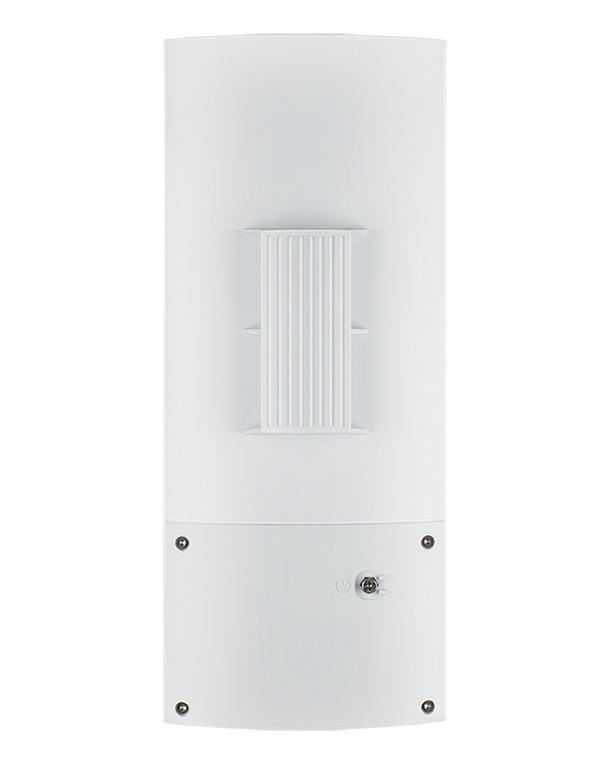

Wireless-N Dual-Band Outdoor Fast Ethernet (2 port) PoE Access Point D-Link DWL-6700AP/MAU

-Wireless-N Dual-Band Outdoor Fast Ethernet (2 port) PoE Access Point (IP55, 2-port PoE 10/100Mbps, 8dBi internal antenna for 2.4GHz, 3dBi internal antenna for 5GHz, Non-standard PoE, PoE Injector IS included), Standalone/Managed mode.

-The DWL-6700AP/MAU Wireless Dual-Band Outdoor Unified Access Point is an access point specially designed for medium distance wireless network bridging services, providing WDS/backhauling networking applications on its 5 GHz band.

-Featuring the 5 Ghz 8 dBi MIMO directional patch antenna, the DWL-6700AP/MAU provides up to 1.5km wireless bridging distance. With WDS support, network administrators can set up multiple DWL-6700AP/MAU throughout a facility and configure them to bridge with one another using the 5 GHz band while also providing network access to individual clients on the 2.4GHz band.

Enhanced Performance

-The DWL-6700AP/MAU delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in both the 2.4 GHz and 5 GHz mode.

-Support for Wi-Fi Multimedia (WMM) and Quality of Service (QoS) feature makes the DWL-6700AP/MAU an ideal Access Point to prioritise audio, video, and voice applications.

-In addition, the load balancing feature ensures maximum performance in the wireless environment.

Security

-The DWL-6700AP/MAU supports the latest standards in Wi-Fi security, including WPA and WPA2.

-In addition, the DWL-6700AP/MAU supports up to 4 Virtual Access Points (VAP) per radio, for a total of 8VAPs, which allows the administrator to assign different access privileges to different groups of users.

-When Station Isolation is enabled, the AP blocks communication between wireless clients on the same radio and VAP.

-When used together with a D-Link Wireless Controller or Unified Switch, wireless network security can be enhanced further.  Centrally Manage your Wireless Network

-When working in conjunction with D-Link Unified Switches/Wireless

Controllers, the DWL-6700AP/MAU can be centrally managed.

-This allows a large number of APs to be deployed and managed easily and efficiently.

-Once the APs are discovered by the switch/controller, the administrator can push

specific configuration sets onto them rather than having to do so one by

one. In addition, RF resource management and security are also managed

centrally, thus allowing the administrator to pre-emptively identify potential

deficiencies and weaknesses in the network.

Wi-Fi Strength LEDs and Remote Reset Button

-The visual 5 GHz signal strength LEDs provides simple indicators to display

the signal strength of the WDS link.

-Network administrators can see the signal strength quickly and clearly, even if the two APs are over a kilometre away from each other.

-The additional remote reset button on the included PoE injector allows the DWL-6700AP/MAU to be hard reset without the need to physically access the device itself.

Quality of Service for Increased Connectivity

-The DWL-6700AP/MAU supports 802.1p Quality of Service (QoS) for enhanced

throughput and better performance of time-sensitive traffic like VoIP and

streaming DSCP.

-The DWL-6700AP/MAU is WMM-certified, so in the event of

network congestion, time-sensitive traffic can be given priority ahead of

other traffic.

-Furthermore, when a number of DWL-6700AP/MAU units are in close

proximity to each other, an access point will refuse new association requests

once its resources are fully utilised, allowing the association request to be

picked up by a neighbouring unit.

-This feature ensures that no single AP is overburdened while others nearby sit idle.

Convenient Installation

-With an embedded antenna and a simple housing, the DWL-6700AP/MAU can be

installed on a pole.

-Enclosed in a IP-55 rated weatherproof housing as well as an operating range between -30°C to 50°C, the DWL-6700AP/MAU is protected against exposure to heat and cold as well as rain.

-For easy installation, it has integrated Power over Ethernet (PoE) support and includes PoE injector, allowing installation of this device in areas where power outlets are not readily available.

Technical Specifications

-Bảo hành 24 tháng.
