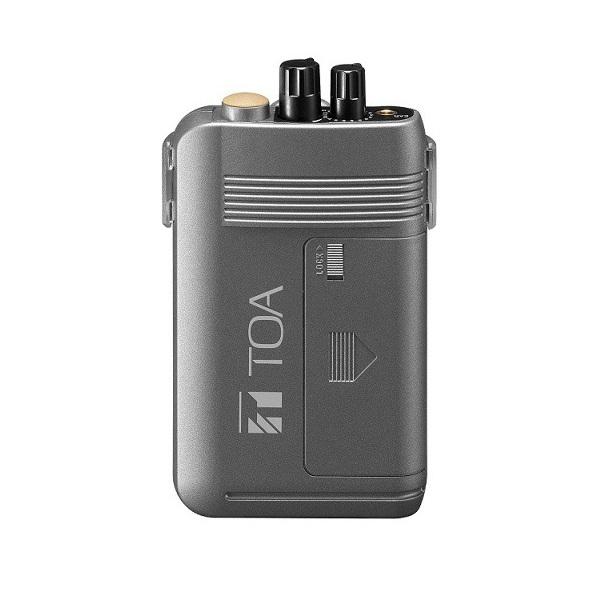

Bộ thu không dây di động UHF TOA WT-5100
WT-5100 là bộ thu cầm tay được thiết kế để nhận sóng radio UHF. Người dùng cần sử dụng thêm tai nghe ngoài để hỗ trợ.
The WT-5100 is a Portable Receiver designed to receive UHF band radio signals. An optional earphone is required.
Specifications
| Model | WT-5100 |
| Power Source | 1.5 VDC (Battery) |
| Receiving Frequency | 576 - 865 MHz (*1), UHF |
| Channel Selectable | 16 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Receiving Sensitivity | Better than 60 dB Signal to Noise ratio (20 dBμV input, ±40 kHz deviation) |
| Frequency Response | 200 Hz - 5 kHz (Portable transmitter to Potable receiver) |
| De-emphasis | 50 μs |
| Output Level | 4 mW (16 Ω load, 10 % distortion) |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or LR6/AA alkaline dry cell battery |
| Battery Life | 16 hours (when the WB-2000 rechargeable battery is used) 15 hours (when the alkaline battery is used) |
| Operation Temperature | -10ºC to +50ºC |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, dark silver |
| Dimensions | 62 x 163.6 x 32.5 mm |
| Weight | 125g |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
