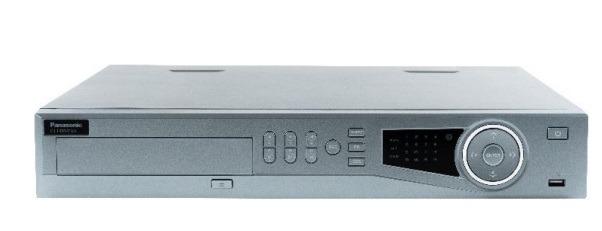

Đầu ghi hình 16 kênh PANASONIC CJ-HDR416A
- Chế độ ghi hình: 1080P/ 1080N/ 720P/ 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps)D1/ IF/ QCIF (1~15fps).
- Băng thông: 1Kbps~6144Kbps per channel.
- Tương thích với tín hiệu ngõ ra: 2 HDMI, 1 VGA và 1 BNC.
- Hỗ trợ 2 cổng USB 3.0 và 1 cổng USB 2.0.
- Hỗ trợ 4 ổ cứng SATA với dung lượng lên đến 32TB.
- Hỗ trợ 4 cổng âm thanh vào và 1 cổng âm thanh ra.
- Hỗ trợ 16 cổng báo động vào và 6 cổng báo động ra.
Đặc tính kỹ thuật
| Model | CJ-HDR416A |
| Video/Audio IF | |
| Video Input | 16 CH, BNC |
| Type | - HDCVI: 720P/1080P - Analog: PAL/NTSC |
| Video Output | 2 HDMI, 1 VGA, 1 BNC |
| Audio Input | 4 CH, BNC |
| Audio Output | 1 CH, BNC |
| Two-way Talk | 1 Mic In, 1 Mic Out, BNC |
| Display | |
| Output Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multiscreen Mode | 1/4/8/9/16 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video/Audio Format | |
| Video/Audio Compression | H.264/G.711a |
| Record Rate | - Main Stream: 1080P/1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) - Sub Stream: D1/CIF/QCIF (1~15fps) |
| Bit Rate | 1Kbps~6144Kbps per channel |
| Record Mode | Manual, Schedule (Regular, Continuous), Alarm, MD, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 0~30 sec, Post-record: 10~300 sec |
| Alarm/Event | |
| Alarm Input | 16 CH |
| Relay Output | 6 CH |
| Trigger Events | Recording, PTZ, Tour, Email, FTP, Alarm Output, Snapshot, Buzzer, Show Message, Alarm Upload, Video Matrix and Log |
| Video Detection | Motion Detection, MD Zones: 396 (22×18)/330 (22x15), Video Loss, Tampering |
| Playback & Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom, Customized playback, Splice playback |
| Backup Mode | USB Device/Network |
| Network Camera | |
| Network Interface | RJ-45 port (1000M) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, EZ Remote |
| Max. User Access | 128 users |
| Mobile Device | iPhone, iPad, Android |
| HDD | |
| Type | 4 SATA ports, up to 8TB for each disk |
| External Interface | |
| USB Interface | 3 ports (2 rear), 1 USB2.0, 2 USB3.0 |
| RS232 | 1 port, for PC communication & keyboard |
| RS485 | 1 port, for PTZ control |
| RS422 | 1 port, for PTZ control |
| General Specifications | |
| Power Supply | AC 100~240V, 50/60 Hz |
| Power Consumption | |
| Working Environment | -10°C~+55°C/0%~90%RH |
| Dimension (W×D×H) | 1.5U, 440mm×418.7mm×76mm |
| Weight | 4.73kg (without HDD) |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
