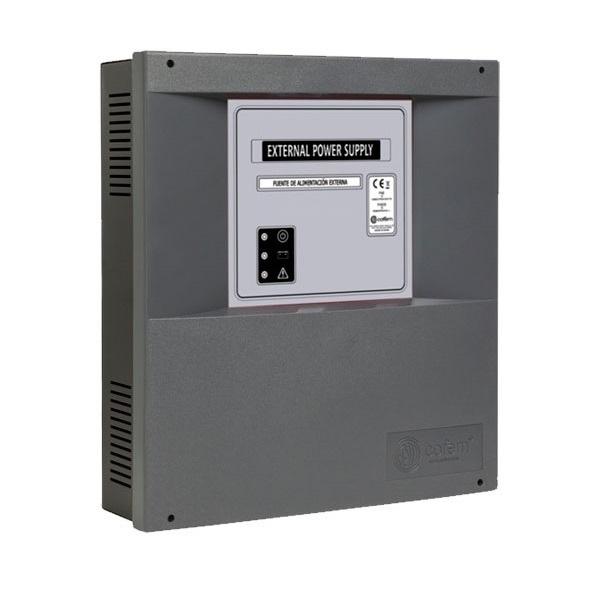

Bộ nguồn cung cấp cho tủ trung tâm COFEM ZAFIRPWS5
- Two outputs:
o Two 30V output monitored and protected by a fuse, for easy connection.
o Dry contact fault output, for integration with other systems.
- Three indication leds to show system status:
o RED (green): system operating through 110/230 V/AC power supply.
o BATTERY (green): system operating under batteries.
o FAULT (amber): system fault, general power supply fault or fault in the auxiliary battery supply.
- Supply capacity 4A (150W).
- Connecting to electrical network directly to the switching power supply.
Specifications
| Model | ZAFIRPWS5 |
| Power supply | 110/230V 50-60Hz/AC |
| Consumption in standby | 50 mA |
| Output voltage | 29 ~ 29,5 VAC |
| Output current | 4A |
| Batteries charger | Yes |
| Humidity | 20 - 95% HR |
| Temperature | -10°C to +50°C |
| Dimensions | 363 x 331 x 96 mm |
| IP protection | IP30 |
| Standard | EN 54-4 |
- Bảo hành: 12 tháng.
