| Product Parameter | Parameter Description |
| Feature | Fail Secure |
| Lock Body | 270Lx30WX48H(mm) |
| Magnetic Plate | 100Lx25Wx3H(mm) |
| Bolt | 16(length)*16(diameter)(mm) |
| Voltage | DC12V |
| Start Current | 1200mA |
| Standby Current | 200mA |
| LED | Light on indicates locked, light off indicates unlocked |
| Suitable For | Wooden door , metal door , fireproof door , glass door |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Lock signal(NO/NC/COM) |
| Material | 304 stainless steel,wire draw finishing |
| Induction Distance | Within 8mm |
| LED | Light on indicates locked, light off indicates unlocked |
| Weight | 1.6kg |

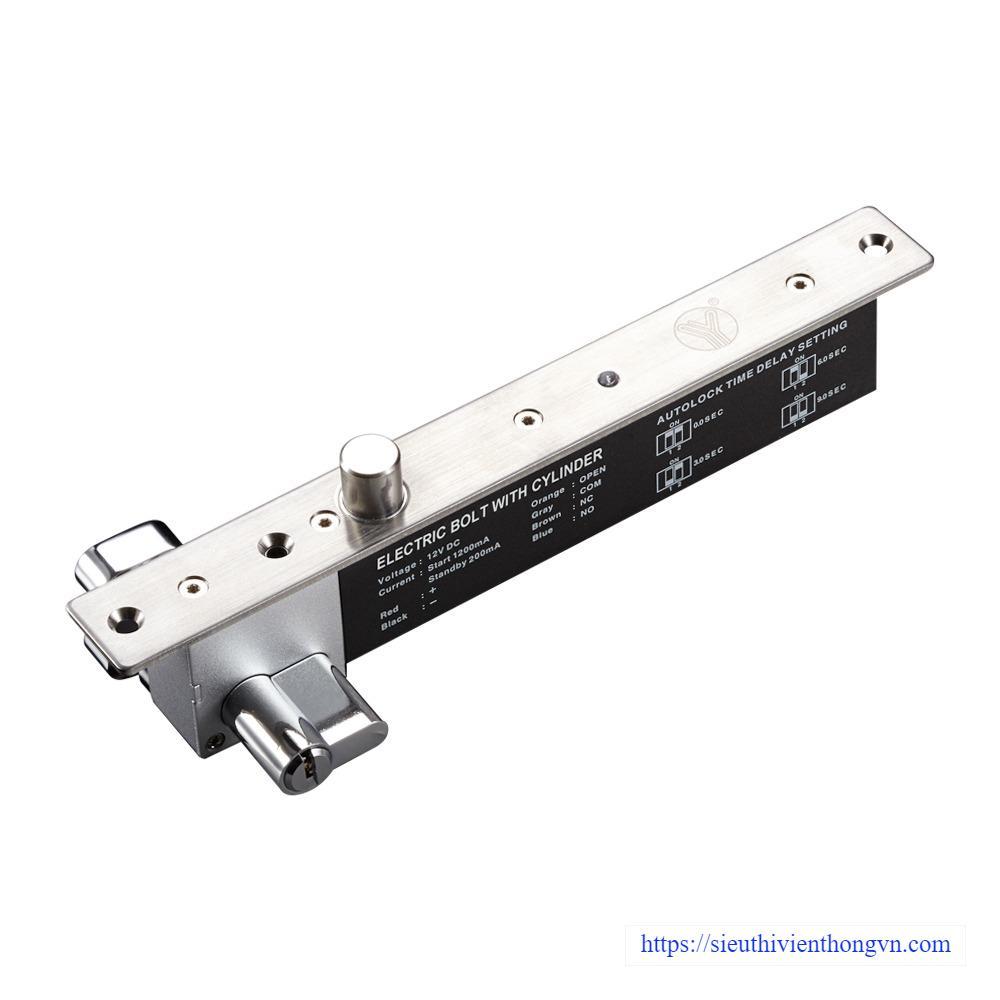

Fail Secure Electric Bolt W/Cylinder YB-600B(LED)
- 2147
- YLI
YB-600B (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized.Under the temperature of 60 ℃ or -40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 2000kg holding force.
