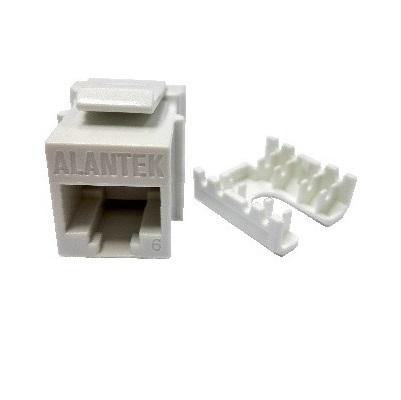

Modular Jack Cat6 UTP Alantek 302-2QX618-WHAB
- Alantek Cat 6 UTP Dual IDC Jack, White.
Description
Alantek Cat6 Slim Line 180° Quick Crimp Keystone Jack are designed to provide superior performance, reliabilityand fast termination. It advanced circuit design provide optimum signal quality, allowing it to exceed TIA/EIA and ISO Category 6 performance standards. The Slim design offers a smallerfootprint maximizing space in confined area.
Application
Suitable for used in 10Base-T to Gigabit Ethernet application. Support all type of Alantek faceplate and Modular Patch Panel.
Standard
- ANSI/TIA 568C.2 Category 6.
- ISO 11801 Class D Standard.
- TIA/EIA TSB-40.
- CENELEC EN50173.
- UL 1863.
- UL94V-0.
Features
- Slim, Modular and Low Profile design allow high density application.
- IDC is configured at 180° to Jack to allow easy reartermination and allow quick termination by Quick Crimp tool.
- Support both T568A and T568B wiring.
- Support 10Base-T to Gigabit Ethernet application.
Characteristics
- Insulation Resistance: 500 m-Ω.
- Dielectric Withstand Voltage: 1000 V AC.
- RMS, 60 Hz 1 min.
- Housing: PC UL94V-0 (High Impact, Fire retardant plastic).
- Contact: Phosphor Bronze Alloy plated with 50 microngold.
- 750 Cycles (min) Insertion and Extraction life.
- IDC: Phosphor Bronze Alloy with 100 micron Sn Alloy.
- Accept 22-24 AWG Solid Wire.
- Sản xuất tại Trung Quốc.
