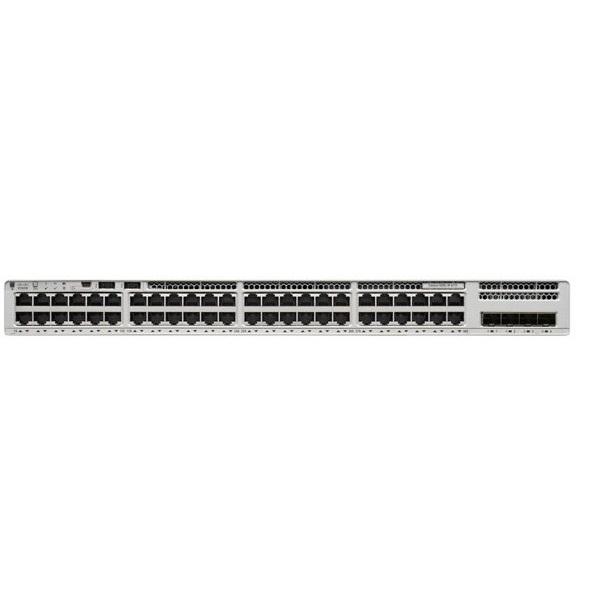

48-port Gigabit Ethernet Data Switch Cisco C9200-48P-E
- C9200-48P-E is the Catalyst 9200 48-port PoE+ Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
- Catalyst 9200 48-port PoE+, Network Essentials.
- Downlinks total 10/100/1000 or PoE+ copper ports: 48-port Full PoE+.
- Uplink configuration: Modular uplink options.
- Default primary AC power supply: PWR-C5-1KWAC.
- Fans: FRU redundant.
- Software: Network Essentials.
- Stacking bandwidth: 160 Gbps.
- DRAM: 4 GB.
- Flash: 4 GB.
- Switching capacity: 176 Gbps.
- Forwarding rate: 261.9 Mpps.
- Chassis Dimensions: 4.4 x 44.5 x 35.0 cm
- Weight: 5.5 kg.
Specification
| Model | C9200-48P-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full PoE+ |
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | FRU redundant |
| Software | Network Essentials |
| Chassis Dimensions | 4.4 x 44.5 x 35.0 cm |
| Weight | 5.5kg |
| Virtual Networks | 4 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching capacity | 176 Gbps |
| Forwarding rate | 261.9 Mpps |
| Mean time between failures (hours) | 375,570 |
- Bảo hành: 12 tháng.
