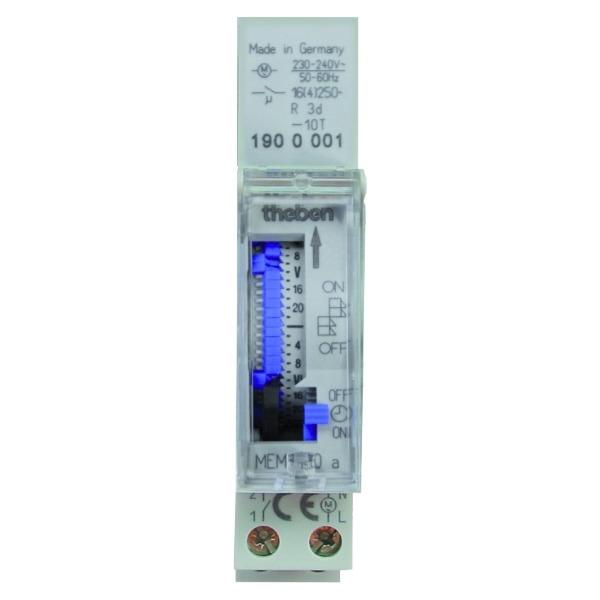

Công tắc hẹn giờ dạng cơ THEBEN MEM 190 a
- Analogue time switch
- 1 channel
- Weekly program
- With power reserve (exchangeable NiMH rechargeable battery)
- 84 switching segments
- Quartz controlled
- Shortest switching time: 2 hours
- Screw terminals
- Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
- Switching status display
Specifications
Operating voltage | 230-240 V AC |
Frequency | 50-60 Hz |
Number of channels | 1 |
Program | Weekly program |
Width | 1 modules |
Installation type | DIN rail |
Type of connection | Screw terminals |
Drive | Quartz-controlled stepper motor |
Program | Weekly program |
Power reserve | 3 days |
Switching capacity at 250 V AC, cos φ = 1 | 16 A |
Switching capacity at 250 V AC, cos φ = 0,6 | 4:00 AM |
Incandescent/halogen lamp load | 1000 W |
Shortest switching times | 2 h |
Programmable every | 2 h |
Time accuracy | ≤ ± 1s/day (quartz) |
Type of contact | NO contact |
Switching output | Potential-free and phase-independent |
Number of switching segments | 84 |
Stand-by consumption | 0,5 W |
Test approval | VDE |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Type of protection | IP 20 |
Protection class | II as per EN 60 730-1 |
Ambient temperature | -10°C...+50°C |
- Hàng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
