Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 480mA ; 24V / 240mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.08 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC (per Magnet)

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 1200 lbs x2 (545 kg x2)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 5.0 kg (±1%)

Dimensions :
Magnet – (L)532x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 450mA ; 24V / 220mA (±5%)

Holding Force : Up to 1500 lbs (680 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 3.6 kg (±1%)

Dimensions :
Magnet – (L)270x(W)76x(T)47 mm
Armature – (L)200x(W)70x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 1200 lbs (545 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 2.5 kg (±1%)

Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 1200 lbs (545 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 2.5 kg (±1%)

Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 420mA ; 24V / 210mA (±5%)

Holding Force : Up to 1200 lbs (545 kg)

Magnetic Contact Rating : 28 VDC, 0.2A, 5W

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 2.5 kg (±1%)

Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight (Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Magnetic Contact Rating : 28 VDC, 0.5A, 10W

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight (Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 480mA ; 24V / 240mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.08 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 500mA ; 24V / 250mA (±5%)

Holding Force : Up to 600 lbs (272 kg)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.1 kg (±1%)

Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

Voltage Input : 12 VDC / 24 VDC (per Magnet)

Current Draw : 12V / 420mA ; 24V / 210mA (±5%)

Holding Force : Up to 1200 lbs x2 (545 kg x2)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 5.0 kg (±1%)

Dimensions :
Magnet – (L)532x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 320mA ; 24V / 160mA (±5%)

Holding Force : Up to 300 lbs (136 kg)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 0.7 kg (±1%)

Dimensions :
Magnet – (L)210x(W)35x(T)21 mm
Armature – (L)130x(W)33x(T)11 mm

Voltage Input : 12 VDC / 24 VDC (per Magnet)

Current Draw : 12V / 300mA ; 24V / 150mA (±5%)

Holding Force : Up to 300 lbs x2 (136 kg x2)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.2 kg (±1%)

Dimensions :
Magnet – (L)340x(W)35x(T)21 mm
Armature – (L)130x(W)33x(T)11 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 450mA ; 24V / 220mA (±5%)

Holding Force : Up to 1500 lbs (680 kg)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 3.6 kg (±1%)

Dimensions :
Magnet – (L)270x(W)76x(T)47 mm
Armature – (L)200x(W)70x(T)16.5 mm

Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 420mA ; 24V / 210mA (±5%)

Holding Force : Up to 1200 lbs (545 kg)

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 2.5 kg (±1%)

Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm

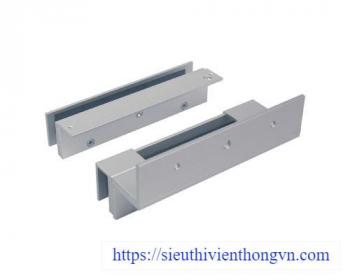

EM300-DSU Bracket

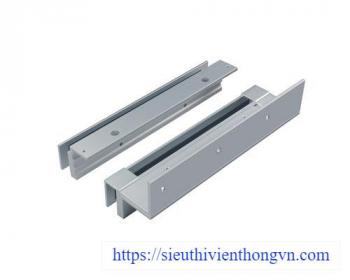

EM600-DSU Bracket

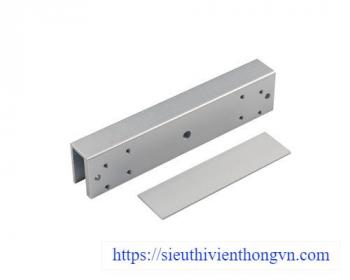

EM600-U1 Bracket

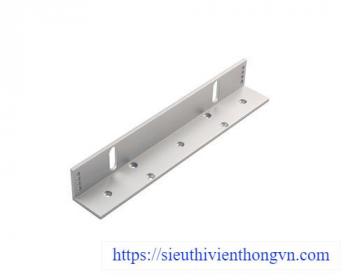

EM600-LS Bracket

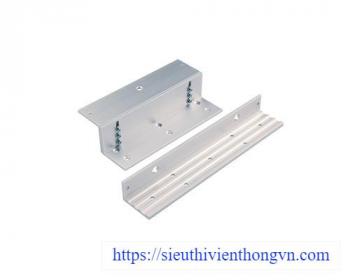

EM600-ZL Bracket

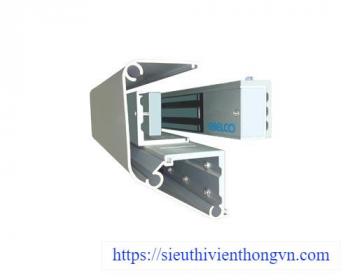

EM600-ZL Cover Bracket

Voltage Input : 12 VDC / 24 VDC (per Magnet)

Current Draw : 12V / 480mA ; 24V / 240mA (±5%)

Holding Force : Up to 600 lbs x2 (272 kg x2)

Hall Effect Contact : SPDT rated 2A at 24 VDC

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55° C ( 32~131° F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 2.2 kg (±1%)

Dimensions :
Magnet – (L)500x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm

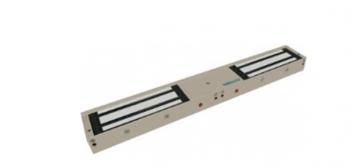

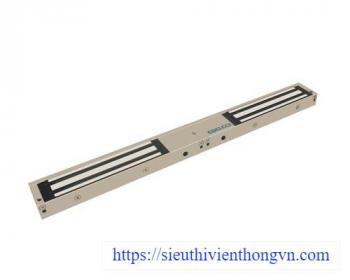

Khóa cửa điện từ E600D-LED

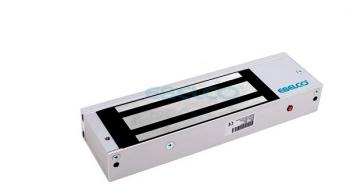

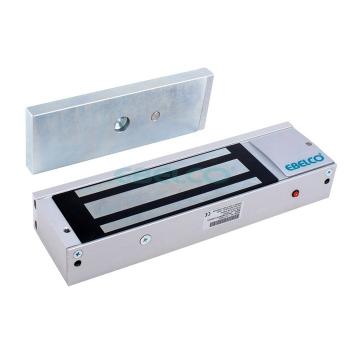

Khóa cửa điện tử Ebelco 1200-LED

Thông số kỹ thuật:

• Điện áp đầu vào: 12VDC / 24VDC
• Vẽ hiện tại: 500mA x2 / 265mA
• Kích thước: (L) 266 x (W) 67 x (T) 39 (mm)

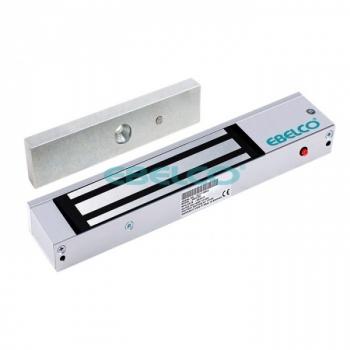

Khóa cửa điện tử Ebelco 300-LED

Voltage Input : 12VDC / 24VDC

Current Draw : 330mA / 185mA

Dimension : (L)210 x (W)35 x (T)22 (mm)

Khóa cửa điện tử Ebelco 300-LED-MC

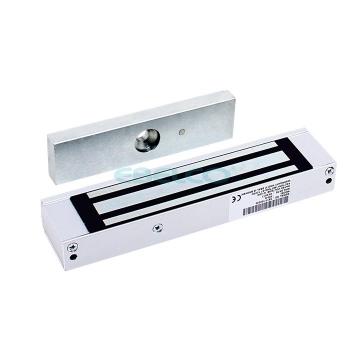

Khóa cửa điện tử Ebelco 300-S

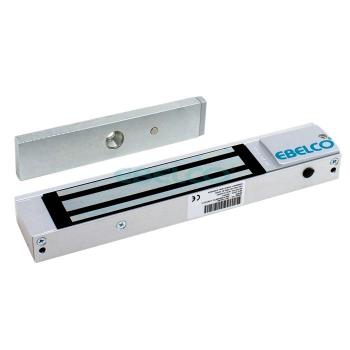

Khóa cửa điện tử Ebelco 300-S-MC

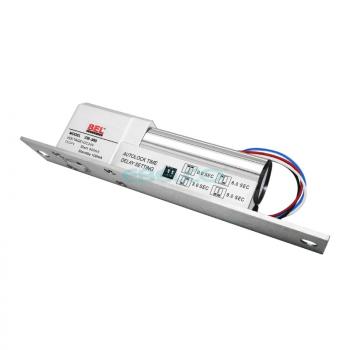

Khóa chốt điện từ Ebelco DB-300

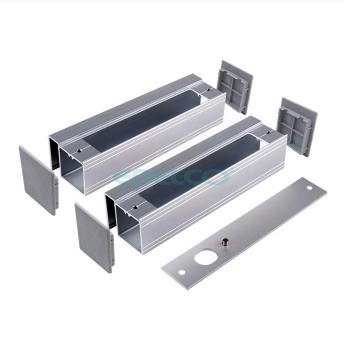

Bát khóa Ebelco AH-UD100

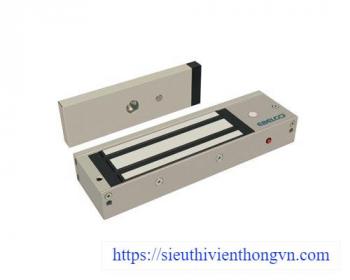

Khóa nam châm điện từ EBELCO 1200LED-Mag.Ctc

Khóa nam châm điện từ EBELCO SS800 (800GL)

Khóa nam châm điện từ EBELCO SS1200 (1200GL)

Khóa chốt thả EBELCO DB-100

Bát chữ ZL EBELCO ZL600

Bát chữ ZL EBELCO ZL-1200

Bát chữ U EBELCO U1-600

Bát bắt Armature EBELCO AH-600

Bát bắt Armature EBELCO AH-1200

Bát chữ L EBELCO LS600

Bát chữ ZL EBELCO DSU-600

Bộ bát bằng nhôm EBELCO AH-UD100

Bộ bát bằng nhôm EBELCO AH-D100

Công tắc nhấn khẩn EBELCO E-108E

Công tắc nhấn khẩn EBELCO EDR819-1

Công tắc nhấn khẩn EBELCO EDR819L-2

Nút nhấn mở cửa khẩn Ebelco E-108E

Khóa chốt điện từ Ebelco DB-100
