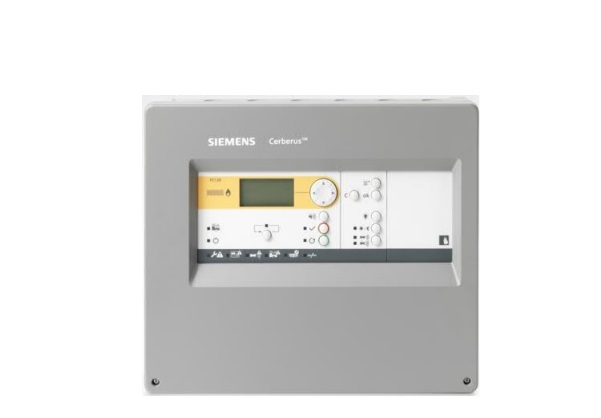

Trung tâm báo cháy 4 vùng SIEMENS FC122-ZA
- The FC122-ZA compacts fire control panels with an integrated operating unit for 4 zones.
- Processes signals from the 110-series/ DS11 and SynoLINE300/600 series.
- The control unit has been designed to be very simple to use while offering exceptional flexibility via a comprehensive feature list.
- All detector lines are monitored for ground faults.
- Adaptation of the customer text directly on the panel via menu navigation.
- Up to 1000 events can be stored according to various criteria.
- Automatic summer/winter time change.
Thông số ky thuật
| Model | FC122-ZA |
| Mains voltage | AC 196…253 V |
| Power consumption | 25 W |
| Operating voltage | DC 21…28.6 V |
| Max. nominal output current without battery charging (I max b) | Max. 0.9 A |
| Battery capacity | 2x 12V, up to 7 Ah |
| Battery monitoring | Yes |
| Mains monitoring | Yes |
| Connectable detector series | 110-series / DS11 / SynoLINE300/600 |
| Number of lines | 4 |
| Number of detectors per line | Max. 32 |
| Slots for relay cards | 1 |
| Emergency current | Up to 72 Ah |
| Operating temperature | -5…+40 °C |
| Storage temperature | -20…+60 °C |
| Humidity (no condensation permitted) | ≤95 % rel |
| Dimensions (W x H x D) | 360 x 310 x 85 mm |
| Protection category (IEC 60529) | IP30 |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
