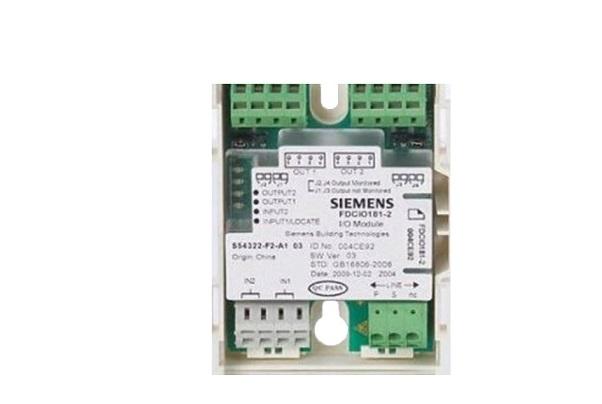

Module điều khiển SIEMENS FDCIO181-2
- Microprocessor-controlled signal evaluation.
- Automatic address setting, without encoder settings or DIP switch.
- 2 monitored input, 2 monitored output.
- LED display of input and output status.
- Input lines monitored for open line or short/open circuit.
- Prevention of noise interference through intelligent analysis of input signals.
- Output lines monitored for open line or short/open circuit (when potential output not activated).
- Output monitoring configurable (on/off).
- Control output for equipment 24 VDC, max. 2A.
- Communication with the controller via FD18-BUS (detector line).
- Directly used in dry areas. Applicable in dusty and humid areas when installed in FDCH221 housing.
- “Sticker Method” easy for commissioning.
Thông số kỹ thuật
| Model | FDCIO181-2 |
| Operating voltage | 12…32 VDC |
| Operating current (quiescent) | 0.56 mA |
| Activation current | 0.85 mA |
| Output | - Capacity: 2A@ 24VDC - Monitoring resistor: 3.3 kΩ (1/4w) - Diode: 1N5404 |
| Input | - Monitoring resistor: 3.3 kΩ/ 680Ω |
| Operating temperature | 0...+42 °C |
| Storage temperature | -20...+75 °C |
| Humidity | ≤95% rel |
| Communication protocol | FD18-BUS |
| Load factors | 5 |
| Connection terminals | 1.0...1.5 mm2 |
| Color | - Housing: White, RAL 9010 - Cover: Transparent |
| Protection category EN60529/ IEC529/ GB4208-93 | With FDCH221 housing: IP65 |
| Approval (for Russian) | TR RF N123-FZ |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
