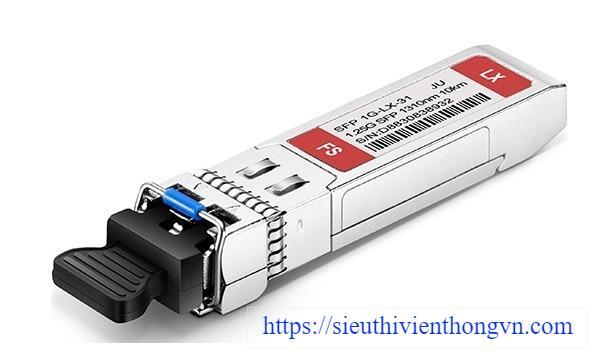

1000BASE-LX Gigabit Ethernet SFP JUNIPER EX-SFP-1GE-LX
- Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics.
Thông số kỹ thuật
| Transceiver Type | SFP |
| Connector | Duplex LC |
| Monitoring Available | Yes |
| Digital Optical Monitoring | Yes |
| Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4) | 1000BASE-LX |
| MSA compliance (SFF, for e.g. SFF-8665) | INF-8074i |
| Optic Type (Commercial Vs Service Provider Grade) | Commercial |
| Digital Diagnostic Monitoring | Tx Power Rx Power Tx Bias Current Case Temperature Power Supply Voltage |
| NEBs (Yes or No) | Yes |
| Signaling rate, each lane | 1.25 Gbps |
| Transmitter wavelengths (range) | 1270 nm to 1355 nm |
| Receive lane wavelengths (range) | 1270 nm to 1355 nm |
| Transmitter output power, each lane (minimum) | -9.5 dBm |
| Transmitter output power, each lane (maximum) | -3 dBm |
| Receiver input power, each lane (minimum) | -19 dBm |
| Receiver input power, each lane (maximum) | -3 dBm |
| Stressed receiver sensitivity (OMA) each lane (maximum) | -14.4 dBm |
| Maximum Power consumption (W) | 1 W |
| Operating Temperature (range) | –5° C to 70° C |
| Storage temperature | –40° C to 85° C |
| Typical Weight & Dimensions | Weight: 0.15 kg Height: 8.55 mm Width: 13.55 mm Depth: 57.5 mm |
- Bảo hành: 12 tháng.
