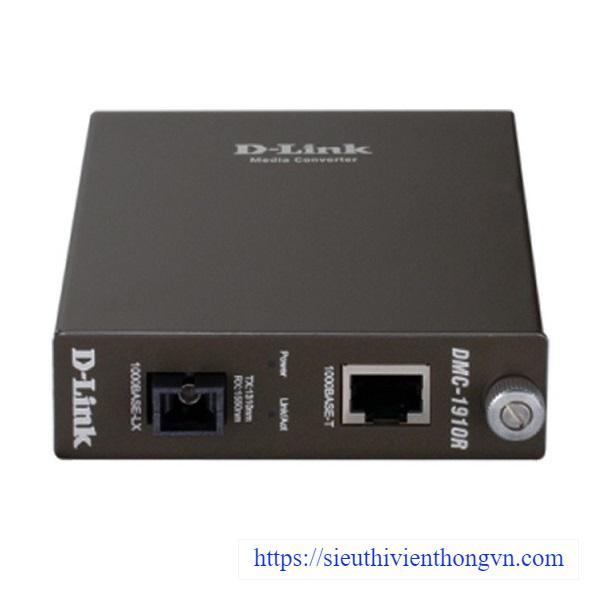

1000Base-TX to 1000Base-LX Single Fiber Media converter D-Link DMC-1910R/E
- 1000Base-TX to 1000Base-LX Single Fiber Media converter (TX: 1310μm; RX: 1550μm, Single-mode, 15km).
- Up to 15 km Single-Mode Fiber Cable Distance.
- Single Fiber Strand for Transmission/Reception.
- Full Duplex operation.
- 802.3x Flow Control Support.
- Manageable Through Intelligent Chassis System.
- LLR (Enable/Disable), Fiber (Auto-Negotiation/Manual) Functions.
- Installable as Stand-Alone Device or in Rack-Mount Chassis.
Specifications
| Model | DMC-1910R/E |
| Standards | 802.3ab 1000BASE-T 802.3z 1000BASE-LX |
| Conversion Scheme | Pair of one-channel single-mode fiber media conversion between 1000BASE-T and 1000BASE-LX |
| Wavelength | 2 different types of transmitting wavelength 1 wavelength with WDM bi-directional for both transmit and receive TX: 1310 Micron; RX: 1550 Micron |
| Connectors | 1000BASE-T: RJ-45 connector |
| 1000BASE-LX: LC connector | |
| Installation Methods | Stand-alone device |
| Installable module in DMC-1000 chassis | |
| Management Functions | LLR (Enable/Disable) |
| Fiber (Auto-Negotiation/Manual) | |
| Operating Temperature | 0° - 40°C |
| Storage Temperature | -25° - 70° C |
| Humidity | 10 ~ 90% non-condensing |
- Bảo hành 12 tháng.
