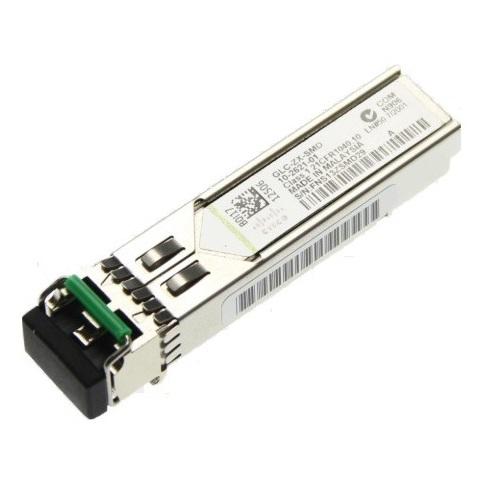

1000Base-ZX SFP Transceiver Cisco GLC-ZX-SMD
- 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM.
- Type: SFP.
- Tx/Rx Wavelength: 1550nm/1550nm.
- Media Type: Single-Mode Fiber (SMF).
- Optical Budget: 24 dB.
- Max. Distance: 80 km.
- Data Rate: 1.063-1.25Gbps.
- Temperature: Standard 0°-70°C.
Specification
| Transceiver Type | SFP |
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength | 1550 nm |
| RX Wavelenght | 1550 nm |
| Minimum Optical Budget | 24 dB |
| Maximum Distance | 80km |
| Supported Data Rate | 1.063-1.25Gbps |
| Supported Applications | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM | Support |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
| Rx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
| Minimum Transmitting Power | 0 dB |
| Maximum Transmitting Power | 5 dB |
| Receiver Sensitivity | -24 dBm |
| Receiver Overload | -3 dBm |
| Dispersion | 1600 ps/nm |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN photodiode |
| Power | +3.3V single power supply |
| Chipset | MAXIM, MINDSPEED, SEMTECH |
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
- Bảo hành: 12 tháng.
