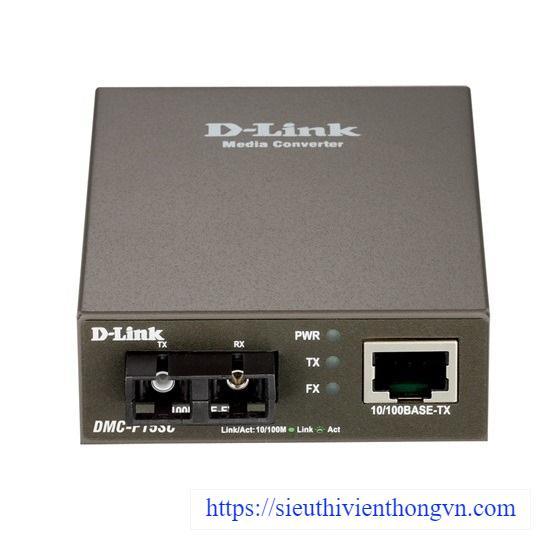

100Base-TX to 100Base-FX (SC) Single-mode Media Converter D-Link DMC-F15SC/E
- 100Base-TX to 100Base-FX (SC) Single-mode Media Converter (15km) (Stand-Alone).
- D-Link’s Standalone Media Converters turn an Ethernet connection into fiber, allowing for ultra-fast long distance connections. Installation of a Standalone Media Converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, the standalone series is able to provide the same high-quality conversion on a unit-by-unit basis. The standalone nature of these means that you can use save space and cut costs while still extending your network over long distances up to 60 km on a fiber-optic line. In addition to all models supporting 10/100 Mbps Half/Full-duplex, the DMC-G01LC also allows for 1000 Mbps Full-Duplexing, letting you truly maximize your network’s potential.
Specifications
| Model | DMC-F15SC/E |
| Max. Forwarding Rate | 10M: 14, 880 pps |
| 100M: 148,800 pps | |
| Forwarding mode | Cut-Through |
| Packet Buffer Memory | 128 Kbits |
| Switching Capacity | 2 Gbps |
| LAN | 1 x 10/100 Mbps port |
| IEEE 802.3u | |
| IEEE 802.3x | |
| Auto-Negotiation for each port | |
| Half/Full-Duplex operation at 10/100 Mbps | |
| Back pressure at Half-Duplex operation | |
| Auto MDI/MDIX | |
| Wire speed reception and transmission | |
| External Power Adapter | Switching 5V/1A Level V Power Adapter, ErP compliant |
| Power Consumption (Max.) at 240V | DC 1.45 W |
| AC 2.21 W | |
| Power Consumption (Standby) at 240V | DC 1.00 W |
| AC 1.61 W | |
| Heat Dissipation (Max.) | 7.44 BTU/h |
| MTBF (hours) | 482,583 |
| Operation Temperature | 0° to 50°C |
| Operating Humidity | 10 to 90% |
- Bảo hành 12 tháng.
