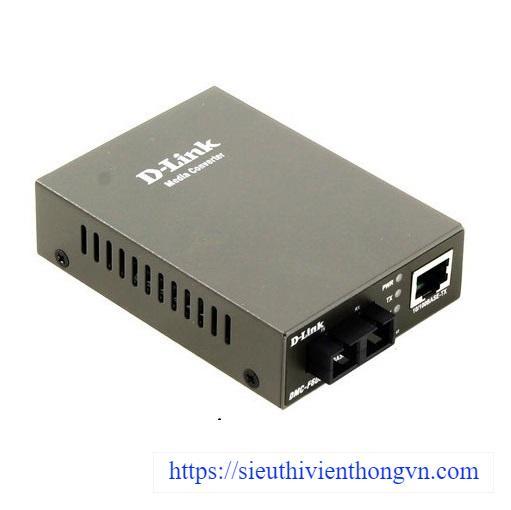

100Base-TX to 100Base-FX (SC) Single-mode Media Converter D-Link DMC-F60SC/E
- 100Base-TX to 100Base-FX Media Converter (Single mode 1310nm) - 60km.
- Fiber-optic speeds are critical to success, but twisted-pair cabling can only go so far. Using D-Link’s converters you can change a twisted-pair Fast Ethernet connection into a single-mode or multi-mode fiber connection that can go much farther. Converters for distances of anywhere from 2 km to 60 km allow you to optimize your selection.
Specifications
Model | DMC-F60SC/E |
Max. Forwarding Rate | 10M: 14, 880 pps |
100M: 148,800 pps | |
Forwarding mode | Cut-Through |
Packet Buffer Memory | 128 Kbits |
Switching Capacity | 2 Gbps |
LAN | 1 x 10/100 Mbps port |
IEEE 802.3u | |
IEEE 802.3x | |
Auto-Negotiation for each port | |
Half/Full-Duplex operation at 10/100 Mbps | |
Back pressure at Half-Duplex operation | |
Auto MDI/MDIX | |
Wire speed reception and transmission | |
External Power Adapter | Switching 5V/1A Level V Power Adapter, ErP compliant |
Power Consumption (Max.) at 240V | DC 1.53 W |
AC 2.32 W | |
Power Consumption (Standby) at 240V | DC 1.06 W |
AC 1.67 W | |
Heat Dissipation (Max.) | 7.92 BTU/h |
MTBF (hours) | 482,583 |
Operation Temperature | 0° to 50°C |
Operating Humidity | 10 to 90% |
- Bảo hành 12 tháng.
